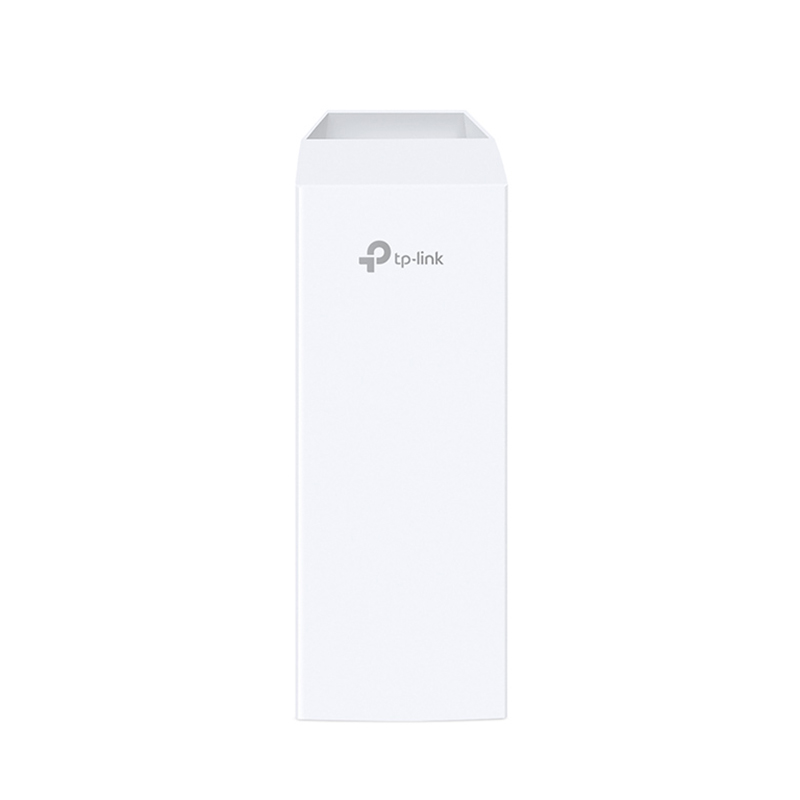

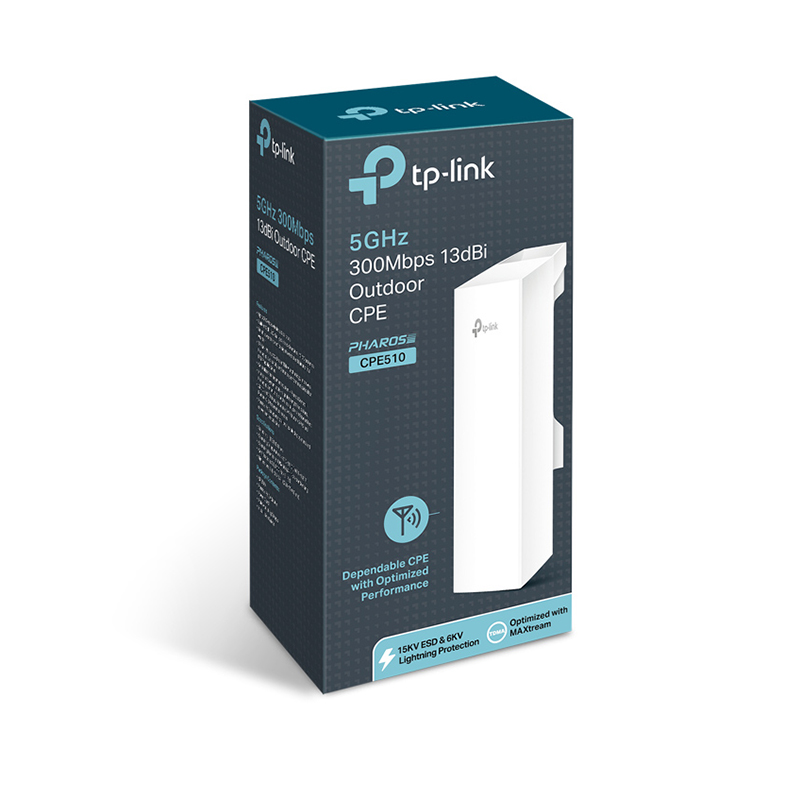

Name: Access Point Outdoor TP-LINK (CPE510) Wireless N300 (5GHz) 13dBi
Brand: TP-Link
SKU: 3000000091188
Price: 1950.00 THB
Availability: InStock

TP-Link

ซื้อ Access Point Outdoor TP-LINK (CPE510) Wireless N300 (5GHz) 13dBi ที่ Mercular เพื่อนสนุกทุก Hobby ของแท้ ประกันศูนย์ไทย ส่งฟรี โปรโมชั่นเด็ด

Access Point Outdoor TP-LINK (CPE510) Wireless N300 (5GHz) 13dBi

ส่งฟรี

ประกันศูนย์

ของแท้ 100%

<table border="1" cellpadding="8" cellspacing="0"><thead><tr><th>คุณสมบัติ</th><th>รายละเอียด</th></tr></thead><tbody><tr><td>Brand</td><td>TP-LINK</td></tr><tr><td>Model</td><td>CPE510</td></tr><tr><td>Standards and Protocol</td><td>IEEE 802.11a/n (with Pharos MAXtream disabled)
Proprietary Protocol : TDMA Mode (with Pharos MAXtream enabled)</td></tr><tr><td>Antenna</td><td>Built-in 13dBi 2x2 Dual-polarized Directional Antenna
Beam Width: 45&deg; (H-Plane) / 30&deg; (E-Plane)
Note : For more details, please refer to datasheet</td></tr><tr><td>Frequency Range</td><td>5.15~5.85GHz
Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used.</td></tr><tr><td>Wireless Transmit Power</td><td>23dBm/200mw (Adjustable power by 1dBm)

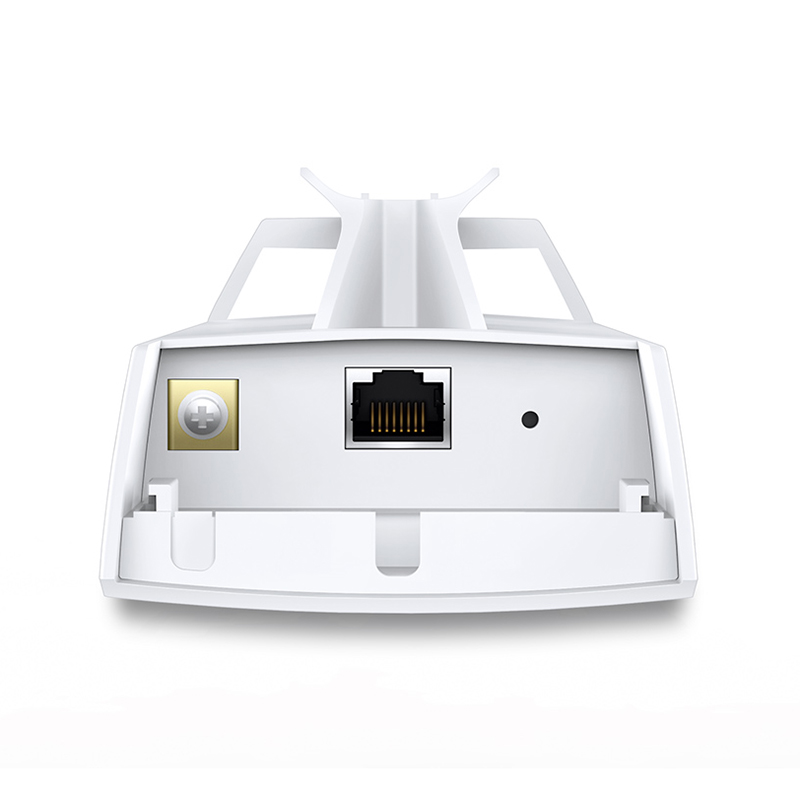

Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used.</td></tr><tr><td>Processor</td><td>Qualcomm Atheros Enterprise 560MHz CPU, MIPS 74Kc</td></tr><tr><td>Memory</td><td>64MB DDR2 RAM, 8MB Flash</td></tr><tr><td>Interface</td><td>1 x 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)
1 x Grounding Terminal
1 x Reset Button</td></tr><tr><td>Data Rates</td><td>Up to 300Mbps (40MHz,Dynamic)
Up to 144.4Mbps (20MHz,Dynamic)
Up to 72.2Mbps (10MHz,Dynamic)
Up to 36.1Mbps (5MHz,Dynamic)</td></tr><tr><td>PoE</td><td>POE ADAPTER FEATURES
Dimensions(W x D x H) : 110*57*33.5mm

Input Current : 0.8A Max @ 100VAC
Input Voltage : 100VA~240VAC @ 50Hz~60Hz

Output : 24VDC, 1.0A Max / +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
Efficiency : &gt;80%

Output Voltage : 24VDC(+4,5pins; -7,8pins)
Input : 100-240VAC, 50/60Hz

Power Status LEDs : 0~0.8A: Green / 0.8A~1.0A: Red
Certifications : CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark

Interfaces :
- 1 x AC Jack with Earth Ground
- 1 x 10/100/1000Mbps Shielded Ethernet Port (Power + Data)
- 1 x 10/100/1000Mbps Shielded Ethernet Port (Data)

Button : Remote Reset Button</td></tr><tr><td>Power Supply</td><td>Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
Voltage range : 16-27VDC

Power Consumption
10.5 Watts Max
Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.</td></tr><tr><td>Environment</td><td>Operating Temperature: -30&deg;C~70&deg;C (-22℉~158℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing</td></tr><tr><td>Certifications</td><td>CE, FCC, RoHS, IPX5</td></tr><tr><td>Package Contents</td><td>Outdoor Wireless CPE
24V 1A Passive PoE Adapter
Pole Mounting Straps
AC Power Cord
Installation Guide</td></tr><tr><td>Management / Configuration / Tools</td><td>Discovery and Remote Management via Pharos Control application
HTTP/HTTPS Web-based management
System Log
SNMP Agent(v2c)
Ping Watch Dog
Dynamic DDNS
SSH Server</td></tr><tr><td>Support Operating System</td><td>Microsoft Windows 98SE, NT, 2000, XP, Vista&trade; or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.</td></tr><tr><td>-</td><td>15KV ESD Protection
6KV Lightning Protection
Outdoor ASA stabilized plastic material
IPX5 waterproof Certification</td></tr><tr><td>Dimensions</td><td>224 x 79 x 60 mm</td></tr><tr><td>Dimension (cm)</td><td>(W x L x H) : 25.00 x 41.00 x 3.50 cm</td></tr><tr><td>Package Dimension (cm)</td><td>(W x L x H) : 25.00 x 41.00 x 3.50 cm</td></tr><tr><td>Net Weight (kg)</td><td>0.70 kg</td></tr><tr><td>Gross Weight (kg)</td><td>0.70 kg</td></tr><tr><td>Volume (cm³)</td><td>3,587.50 kg</td></tr></tbody></table>
