Name: Barcode Scanner HONEYWELL 1472G
Brand: HONEYWELL
SKU: 3000000170346
Price: 6490.00 THB
Availability: InStock

HONEYWELL

ซื้อ Barcode Scanner HONEYWELL 1472G ที่ Mercular เพื่อนสนุกทุก Hobby ของแท้ ประกันศูนย์ไทย ส่งฟรี โปรโมชั่นเด็ด

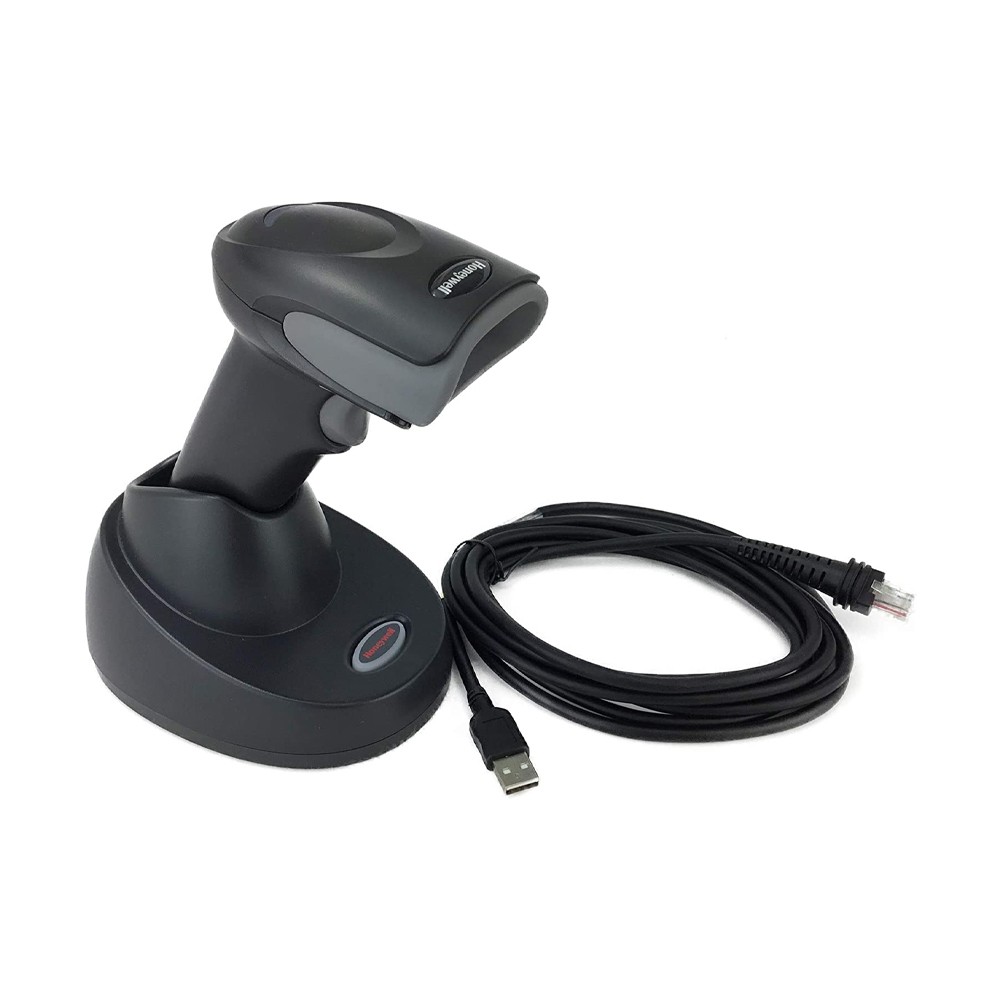

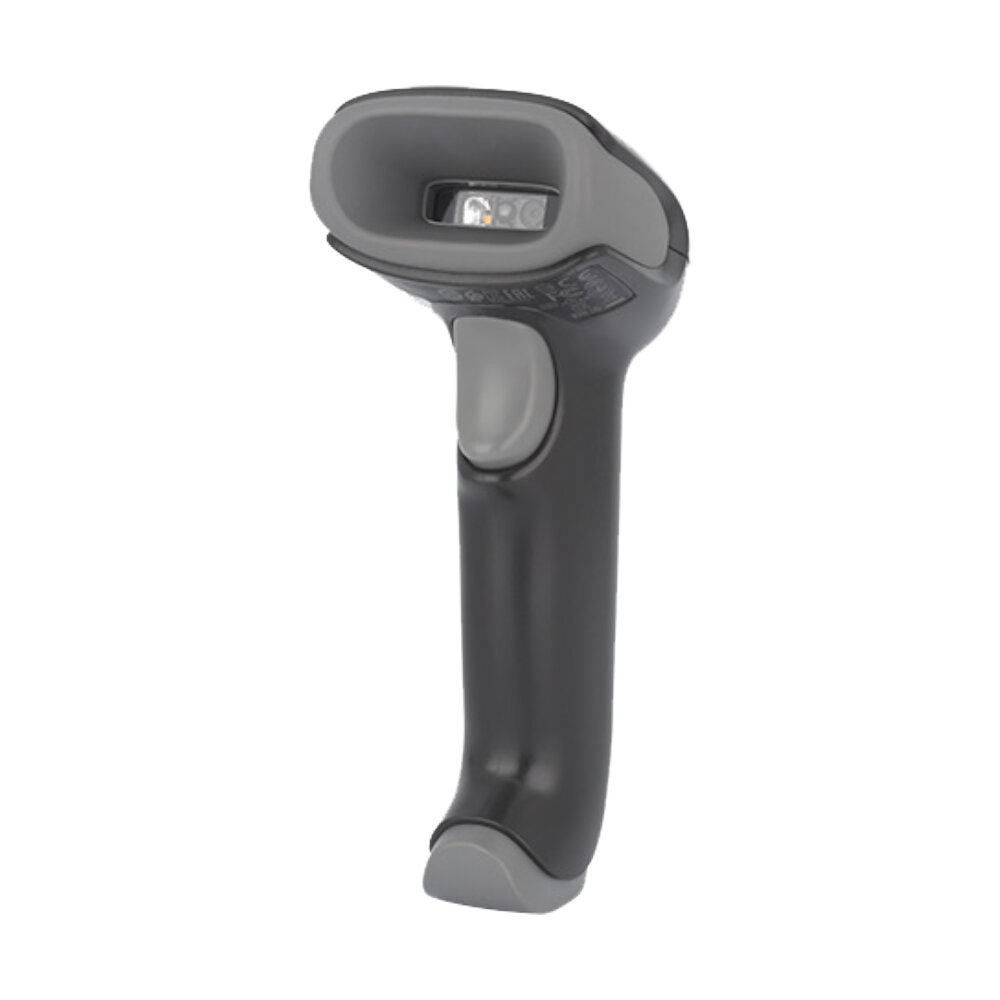

Barcode Scanner HONEYWELL 1472G

ส่งฟรี

ประกันศูนย์

ของแท้ 100%

<table border="1" cellpadding="8" cellspacing="0"><thead><tr><th>คุณสมบัติ</th><th>รายละเอียด</th></tr></thead><tbody><tr><td>Brand</td><td>HONEYWELL</td></tr><tr><td>Model</td><td>1472G</td></tr><tr><td>Support Barcode Type</td><td>1D, 2D</td></tr><tr><td>Interface</td><td>WIRELESS
Radio/Range : 2.4 GHz to 2.5 GHz (ISM Band)
Adaptive Frequency Hopping Bluetooth v4.2
30 m (98 ft) line of sight with Honeywell charger/communication base</td></tr><tr><td>Light Source</td><td>Illumination : Warm white LED (CCT 2700K)
Aimer : Red dot LED, 624nm&nbsp;
Light Levels :&nbsp;0 to 100,000 lux (9,290 foot-candles)</td></tr><tr><td>Sensor Resolution</td><td>1040 x 720 pixel array</td></tr><tr><td>Scan Rate</td><td>Motion Tolerance : 70 cm/s (27.6 in/s) for 13 mil UPC at optimal focus</td></tr><tr><td>Scan Angle</td><td>Horizontal : 39.2&deg; nominal
Vertical : 27.4&deg; nominal
Roll, Pitch, Skew : &plusmn;180&deg;, &plusmn;65&deg;, &plusmn;70&deg;</td></tr><tr><td>Field of View</td><td>N/A</td></tr><tr><td>Depth of Field</td><td>5 mil Code 39 : 20 mm - 205 mm (0.8 in - 8.1 in)
13 mil UPC : 18 mm - 400 mm (0.7 in - 15.8 in)
6.7 mil PDF417 : 15 mm - 185 mm (0.6 in - 7.3 in)
10 mil DM** : 10 mm - 165 mm (0.4 in - 6.5 in)
20 mil QR : 5 mm - 325 mm (0.2 in - 12.8 in)</td></tr><tr><td>PCS</td><td>15%</td></tr><tr><td>Support Symbol</td><td>1D : Code 39, code 128, code 93, EAN,UPC, code 11, code 32 Pharmaceutical,codabar, China Post, GS1 databar

2D : Aztec, Data Matrix, QR/Micro QR code,Maxicode, Chinese sensible (Han Xin)code, postal code, PDF417, DotCode,
Digital Watermarking: Digimarc

OCR : OCR A, OCR B, MICR E-13B and SEMI Font, in a 6 to 60 points OCR typeface

Note : Decode capabilities dependent on configuration.</td></tr><tr><td>Trigger Mode</td><td>Handheld, Continuous</td></tr><tr><td>Sensor</td><td>User Indicators : Good Decode LEDs, Rear View LEDs, Beeper (adjustable tone and volume), Vibration (adjustable), Charge Status Indicator</td></tr><tr><td>Power Supply</td><td>Battery : 2400 mAh Li-ion minimum
Number of Scans : Up to 50,000 scans per charge
Expected Duration of Operatio : 14 hours
Expected Charge Time : 4.5 hours

Standby Power : Charger/Communication Base: 0.5 W (0.1A @ 5V)</td></tr><tr><td>Enviroment</td><td>Operating Temperature:
Scanner:
&nbsp;- Charging: 5&deg;C to 40&deg;C (41&deg;F to 104&deg;F)
&nbsp;- Non-Charging: 0&deg;C to 50&deg;C (23&deg;F to 122&deg;F)

Charger/Communication Base:
&nbsp;- Charging: 5&deg;C to 40&deg;C (41&deg;F to 104&deg;F)
&nbsp;- Non-Charging: 0&deg;C to 50&deg;C (32&deg;F to 122&deg;F)

Storage Temperature:
Scanner:
&nbsp;- For storage up to 90 days: -20&deg;C to 35&deg;C (-4&deg;F to 95&deg;F)
&nbsp;- For storage up to 1 year: -20&deg;C to 20&deg;C (-4&deg;F to 68&deg;F)

Charger/Communication Base: -40&deg;C to 70&deg;C (-40&deg;F to 158&deg;F)

Electrostatic Discharge (ESD) (Scanners and Cradles): &plusmn;8 kV indirect coupling plane, &plusmn;15 kV direct air
Humidity: 0% to 95% relative humidity, non-condensing
Tumble Spec: 1,000 0.5 m (1.6 ft) tumbles (impacts)
Drop: Engineered to withstand 30 1.8 m (6 ft) drops to concrete
Environmental Sealing: IP42</td></tr><tr><td>Special Features</td><td>Host System Interfaces : USB, Keyboard Wedge, RS-232, RS485 support for IBM 46xx (RS485)

Dimensions&nbsp;
Scanner (L x W x H) : 62 mm x 173 mm x 82 mm&nbsp;
Charger/Communication Base :&nbsp;132 mm x 102 mm x 81 mm

Weight&nbsp;
Scanner : 210 g
Charger/Communication Base : 179 g</td></tr><tr><td>Package Contents</td><td>N/A</td></tr><tr><td>Dimension (cm)</td><td>(W x L x H) : 6.20 x 8.20 x 17.30 cm</td></tr><tr><td>Package Dimension (cm)</td><td>(W x L x H) : 14.50 x 22.50 x 13.00 cm</td></tr><tr><td>Net Weight (kg)</td><td>0.21 kg</td></tr><tr><td>Gross Weight (kg)</td><td>0.63 kg</td></tr><tr><td>Volume (cm³)</td><td>4,241.25 kg</td></tr></tbody></table>
