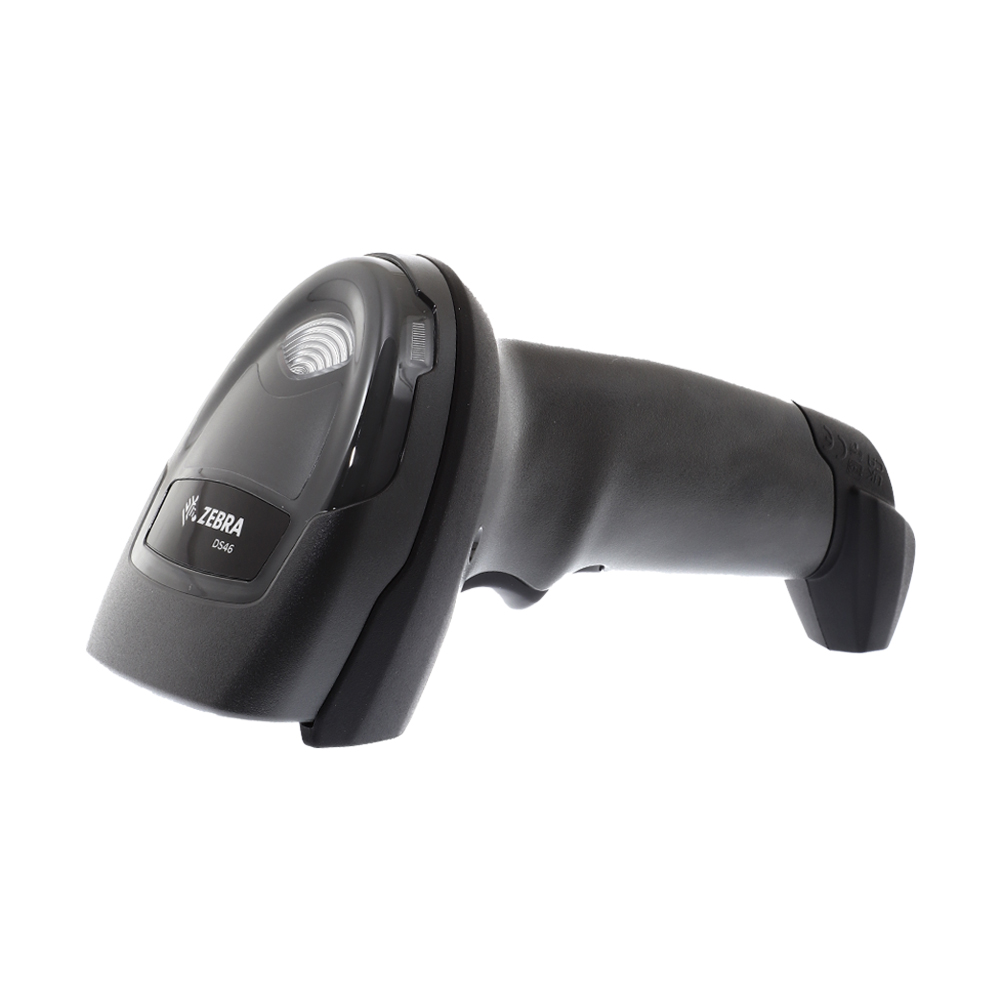

Name: Barcode Scanner ZEBRA DS4608 (สายเกลียว USB)
Brand: ZEBRA
SKU: 3000000165661
Price: 4990.00 THB
Availability: InStock

ZEBRA

ซื้อ Barcode Scanner ZEBRA DS4608 (สายเกลียว USB) ที่ Mercular เพื่อนสนุกทุก Hobby ของแท้ ประกันศูนย์ไทย ส่งฟรี โปรโมชั่นเด็ด

Barcode Scanner ZEBRA DS4608 (สายเกลียว USB)

ส่งฟรี

ประกันศูนย์

ของแท้ 100%

<table border="1" cellpadding="8" cellspacing="0"><thead><tr><th>คุณสมบัติ</th><th>รายละเอียด</th></tr></thead><tbody><tr><td>Brand</td><td>Zebra</td></tr><tr><td>Model</td><td>DS-4608&nbsp;(สายเกลียว USB)</td></tr><tr><td>Support Barcode Type</td><td>1D, 2D</td></tr><tr><td>Interface</td><td>USB Certified, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485</td></tr><tr><td>Light Source</td><td>Aiming Pattern : circular 617nm amber LED
Illumination :&nbsp;(2) 660nm red LEDs</td></tr><tr><td>Sensor Resolution</td><td>1280 x 800 pixels</td></tr><tr><td>Scan Rate</td><td>100 scans per second</td></tr><tr><td>Scan Angle</td><td>Skew :&nbsp;+/- 60&deg;
Pitch :&nbsp;+/- 60&deg;
Roll : 0&deg;&ndash;360&deg;</td></tr><tr><td>Field of View</td><td>31.6&deg; H x 22.6&deg; V nominal</td></tr><tr><td>Depth of Field</td><td>Code 39: 3 mil - 2.2 in to 5.4 in (5.6cm to 13.7cm)
Code 39: 5 mil&nbsp;-&nbsp;0.7 in to 11.0 in (1.8cm to 27.9cm)
Code 39: 20 mil -&nbsp;0 in to 44.0 in (0cm to 111.8cm)
Code 128: 5 mil -&nbsp;2.7 in to 5.4 in (6.9cm to 13.7cm)
PDF 417: 6.7 mil -&nbsp;1.3 in to 10.0 in (3.3cm to 25.4cm)
UPC: 13 mil (100%)&nbsp;- 0 in to 28.0 in (0cm to 71.1cm)
DataMatrix: 10 mil -&nbsp;1.0 in to 11.5 in (2.5cm to 29.2cm)
QR: 20 mil -&nbsp;0 in to 17.5 in (0cm to 44.5cm)</td></tr><tr><td>PCS</td><td>15% minimum reflective difference</td></tr><tr><td>Support Symbol</td><td>1D
Code 39, Code 128, Code 93, Codabar/NW7, Code 1 1, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3of 5, GS1 DataBar, Base 32 (Italian Pharma)

2D
PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes, SecurPharm, DotCode, Dotted DataMatrix

OCR
OCR-A, OCR-B, MICR, US Currency

Minimum Element Resolution&nbsp;&nbsp; &nbsp;
Code 39&ndash;3.0 mil (DS4600-SR)
DataMatrix&ndash;5.0 mil (DS4600-SR)
Code 39&ndash;2.0 mil (DS4600-HD)
DataMatrix&ndash;4.0 mil (DS4600-HD)</td></tr><tr><td>Trigger Mode</td><td>Hand-held,&nbsp;Hands-free</td></tr><tr><td>Sensor</td><td>Direct Decode Indicator, Good Decode LEDs, Rear view LEDs, Beeper (adjustable tone and volume)</td></tr><tr><td>Power Supply</td><td>Input Voltage Range
4.5 to 5.5 VDC

Operating Current at Nominal Voltage (5.0V)
340 mA (typical)

Standby Current (Idle) at Nominal Voltage (5.0V)
150 mA (typical)</td></tr><tr><td>Enviroment</td><td>Operating Temp.
+32.0F to +122.0F (0.0C to +50.0C)

Storage Temp.
-40.0F to +158.0F (-40.0C to +70.0C)

Humidity
5% to 95% RH, non-condensing

Drop Specification
Designed to withstand multiple drops at 6.0 ft (1.8m) to concrete

Tumble Specification
Designed to withstand 2,000 tumbles in 1.5 ft (0.5m) tumbler

Sealing
IP52

ESD
Scanner/Standard Cradle/Presentation Cradle: ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV Direct, +/-8 KV Indirect

Ambient Light Immunity
0 to 10,000 foot candles/0 to 107,000 Lux</td></tr><tr><td>Special Features</td><td>N/A</td></tr><tr><td>Package Contents</td><td>Barcode Scanner

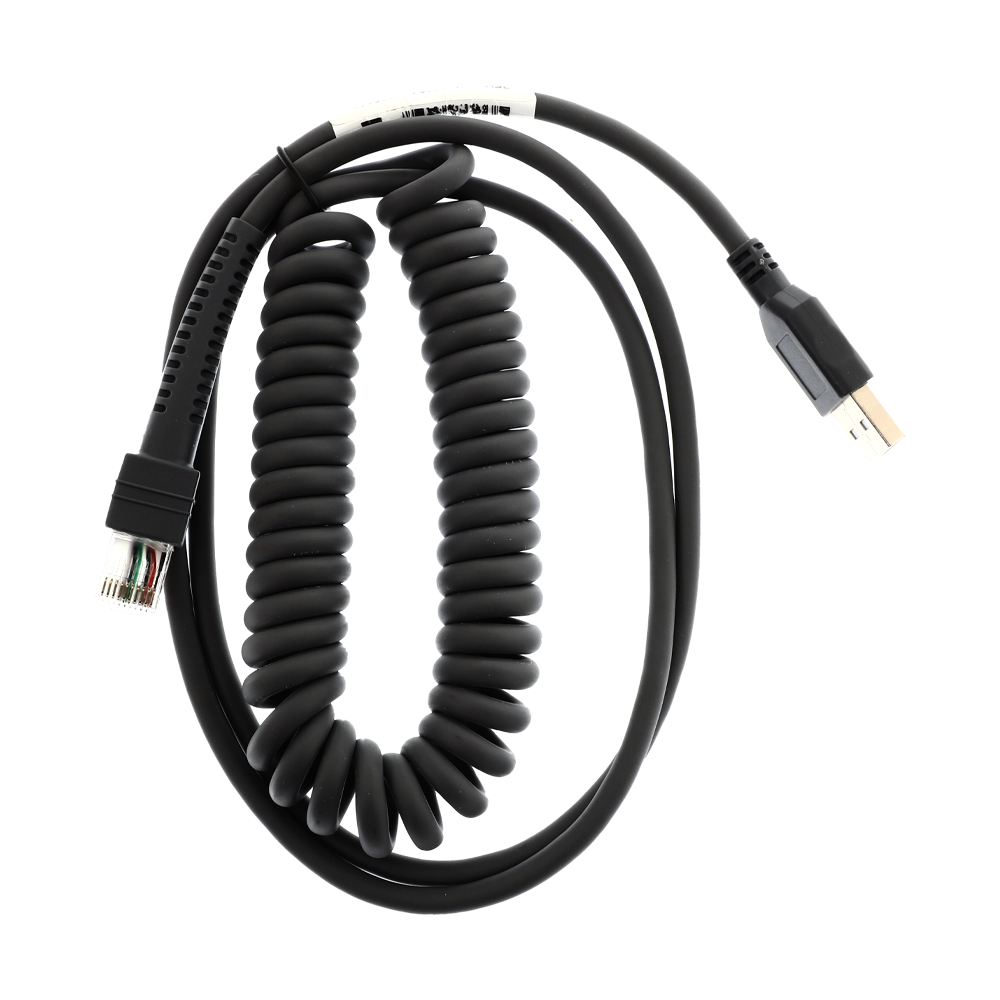

Cable USB&nbsp;(สายเกลียว)

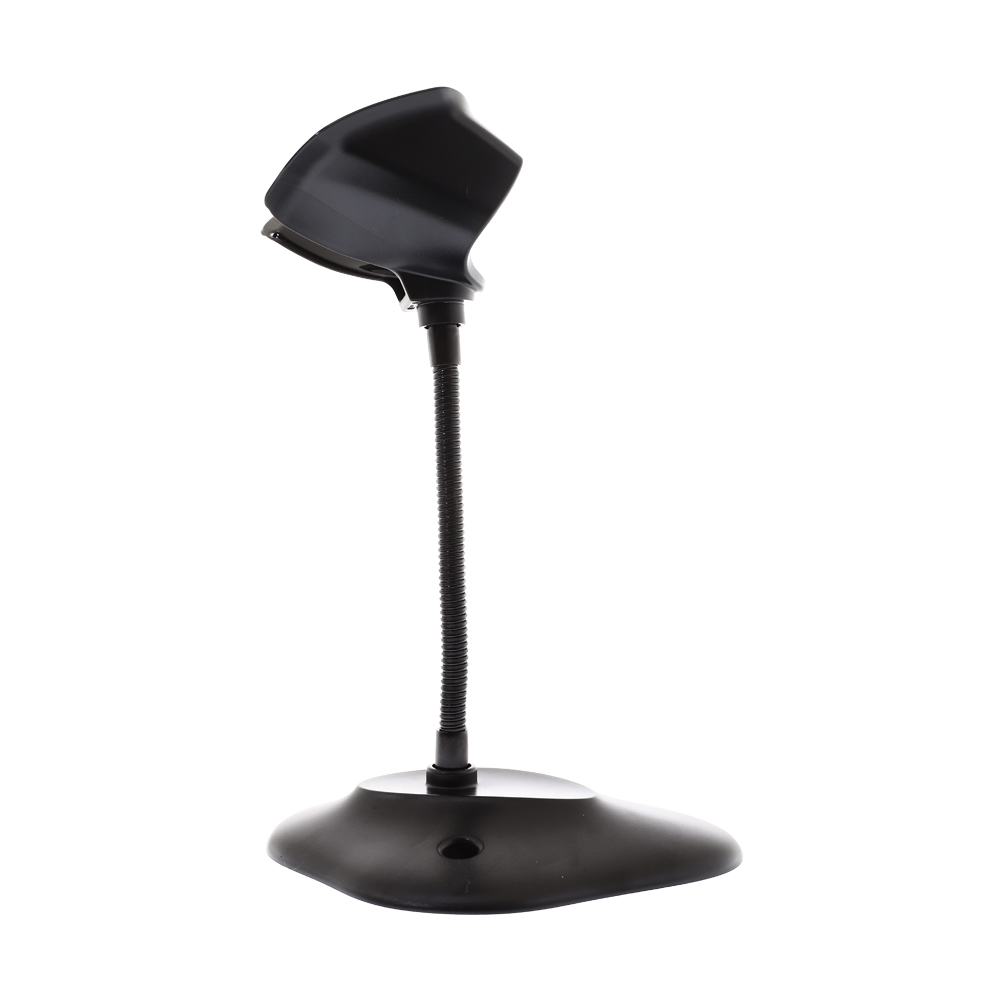

Stands</td></tr><tr><td>Dimension (cm)</td><td>(W x L x H) : 6.70 x 9.80 x 16.50 cm</td></tr><tr><td>Package Dimension (cm)</td><td>(W x L x H) : 23.00 x 19.00 x 14.00 cm</td></tr><tr><td>Net Weight (kg)</td><td>16.19 kg</td></tr><tr><td>Gross Weight (kg)</td><td>0.71 kg</td></tr><tr><td>Volume (cm³)</td><td>6,118.00 kg</td></tr></tbody></table>
