Name: Barcode Scanner ZEBRA DS9308
Brand: ZEBRA
SKU: 3000000159287
Price: 6100.00 THB
Availability: InStock

ZEBRA

ซื้อ Barcode Scanner ZEBRA DS9308 ที่ Mercular เพื่อนสนุกทุก Hobby ของแท้ ประกันศูนย์ไทย ส่งฟรี โปรโมชั่นเด็ด

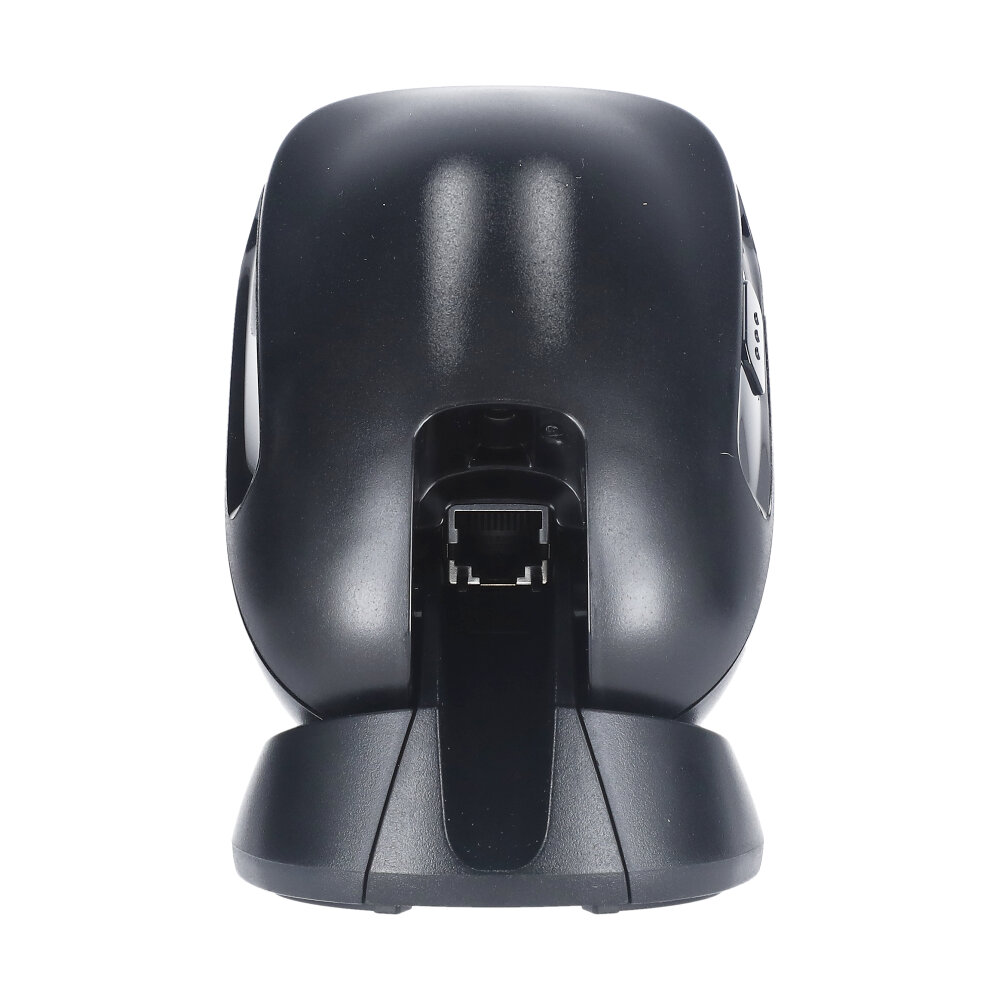

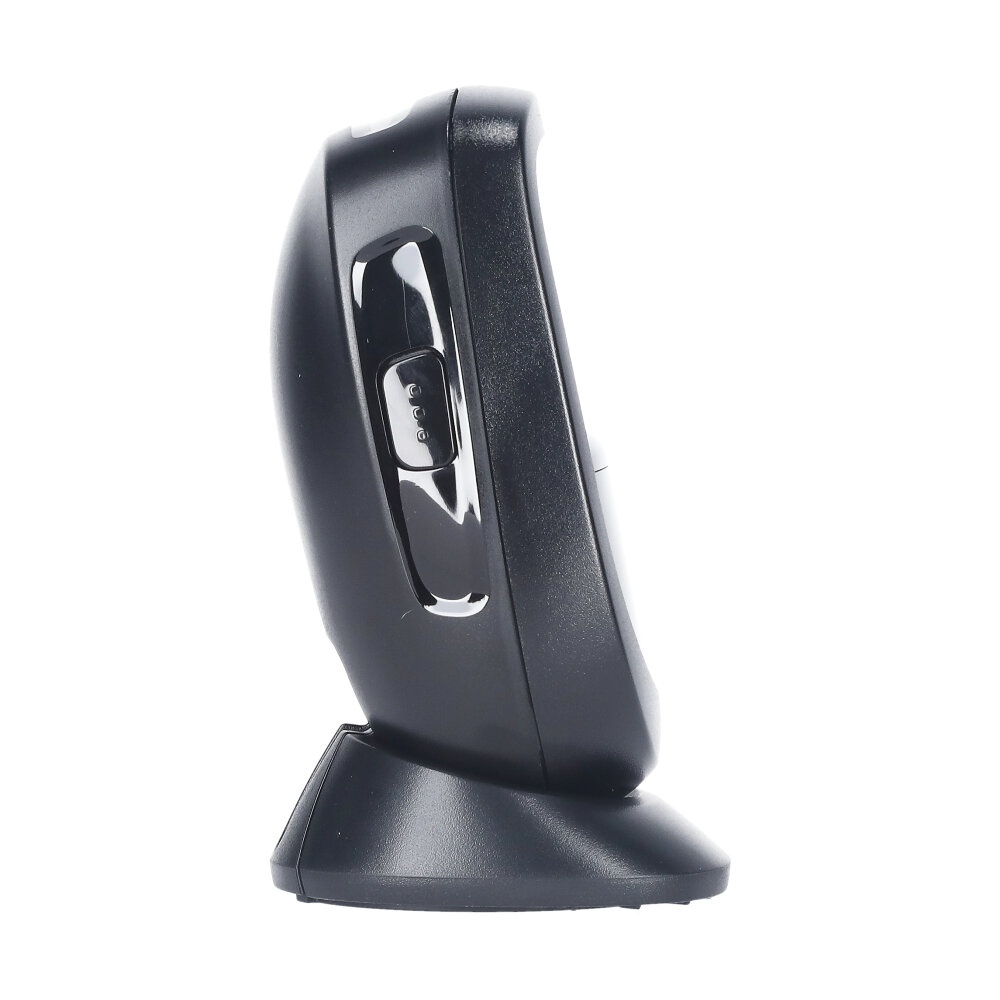

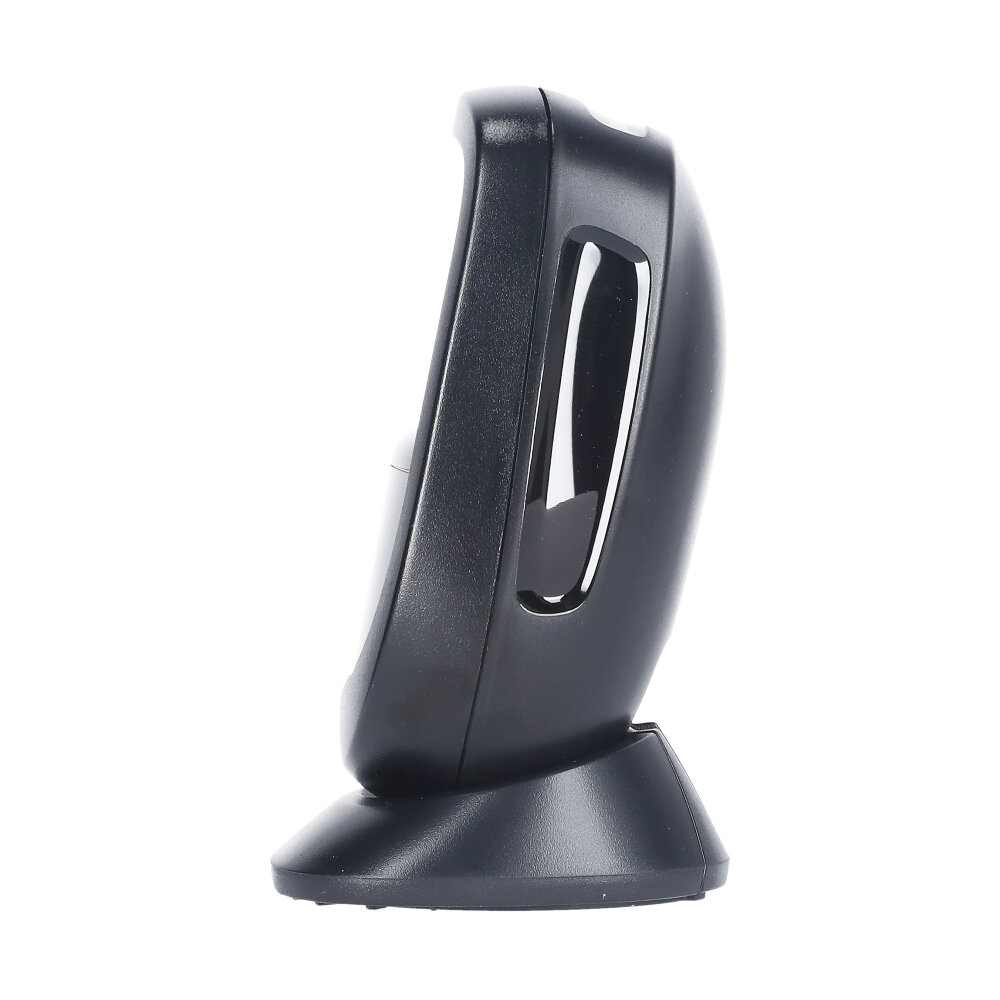

Barcode Scanner ZEBRA DS9308

ส่งฟรี

ประกันศูนย์

ของแท้ 100%

<table border="1" cellpadding="8" cellspacing="0"><thead><tr><th>คุณสมบัติ</th><th>รายละเอียด</th></tr></thead><tbody><tr><td>Brand</td><td>ZEBRA</td></tr><tr><td>Model</td><td>DS-9308 2D</td></tr><tr><td>Support Barcode Type</td><td>1D, 2D</td></tr><tr><td>Interface</td><td>USB</td></tr><tr><td>Light Source</td><td>Aiming pattern: circular 617 nm amber LED
660 nm Hyper Red LED</td></tr><tr><td>Sensor Resolution</td><td>1280 x 800 pixels</td></tr><tr><td>Scan Rate</td><td>Up to 120 in./305 cm. per second for 13 mil UPC in optimized mode</td></tr><tr><td>Scan Angle</td><td>Skew Tolerance : +/-60&deg;
Pitch Tolerance : +/-60&deg;
Roll Tolerance : 360&deg;</td></tr><tr><td>Field of View</td><td>52&deg; H x 33&deg; V nominal</td></tr><tr><td>Depth of Field</td><td>Code 39: 3 mil&nbsp;0 in./0 cm - 2.5 in./6.35 cm
Code 39: 5 mil&nbsp;0 in./0 cm - 5.0 in./12.7 cm
Code 39: 20 mil&nbsp;0 in./0 cm - 11.0 in./27.9 cm
Code 128: 3 mil&nbsp;0 in./0 cm - 2.0 in./5.1 cm
Code 128: 5 mil&nbsp;0 in./0 cm - 4.0 in./10.2 cm
PDF 417: 6.7 mil&nbsp;0 in./0 cm - 4.0 in./10.2 cm
UPC: 13 mil (100%)&nbsp;0 in./0 cm - 8.8 in./22.4 cm
Data Matrix: 10 mil&nbsp;0 in./0 cm - 4.5 in. /11.4 cm
QR: 20 mil&nbsp;0 in./0 cm - 7.5 in./19.1 cm</td></tr><tr><td>PCS</td><td>15%</td></tr><tr><td>Support Symbol</td><td>1D
Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma)

2D
PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes, securPharm, DotCode, Dotted DataMatrix

OCR
OCR-A, OCR-B, MICR, US currency

Digimarc
Available on specific models only

Minimum Element Resolution
Code 39: 3 mil; Code 128: 3 mil; Data Matrix: 5 mil; QR Code: 5 mil

Imaging Characteristics
Graphics Format Support&nbsp;:&nbsp;Images can be exported as bitmap, JPEG or TIFF
Image Quality : 109 PPI on a 4.1 in. x 5.8 in./A6 sized document</td></tr><tr><td>Trigger Mode</td><td>Yes</td></tr><tr><td>Sensor</td><td>Good decode LEDs, rear view LEDs, beeper (Adjustable tone and volume)</td></tr><tr><td>Power Supply</td><td>Input Voltage Range :&nbsp;4.5 to 5.5</td></tr><tr><td>Enviroment</td><td>Operating Temperature
32.0&deg; F to 122.0&deg; F / 0.0&deg; C to 50.0&deg; C

Storage Temperature
-40.0&deg; F to 158.0&deg; F / -40.0&deg; C to 70.0&deg; C

Humidity
5% to 95% RH, non-condensing

Drop Specification
Designed to withstand multiple drops at 5.0 ft. / 1.5 m to concrete

Tumble Specification
Designed to withstand 1,000 tumbles in 1.5 ft. /0.5 m tumbler

Environmental Sealing
IP52</td></tr><tr><td>Special Features</td><td>N/A</td></tr><tr><td>Package Contents</td><td>Multi-mount bracket, locking-mount bracket</td></tr><tr><td>Dimension (cm)</td><td>(W x L x H) : 8.60 x 8.30 x 14.50 cm</td></tr><tr><td>Package Dimension (cm)</td><td>(W x L x H) : 12.50 x 9.00 x 9.00 cm</td></tr><tr><td>Net Weight (kg)</td><td>0.31 kg</td></tr><tr><td>Gross Weight (kg)</td><td>0.50 kg</td></tr><tr><td>Volume (cm³)</td><td>1,012.50 kg</td></tr></tbody></table>
