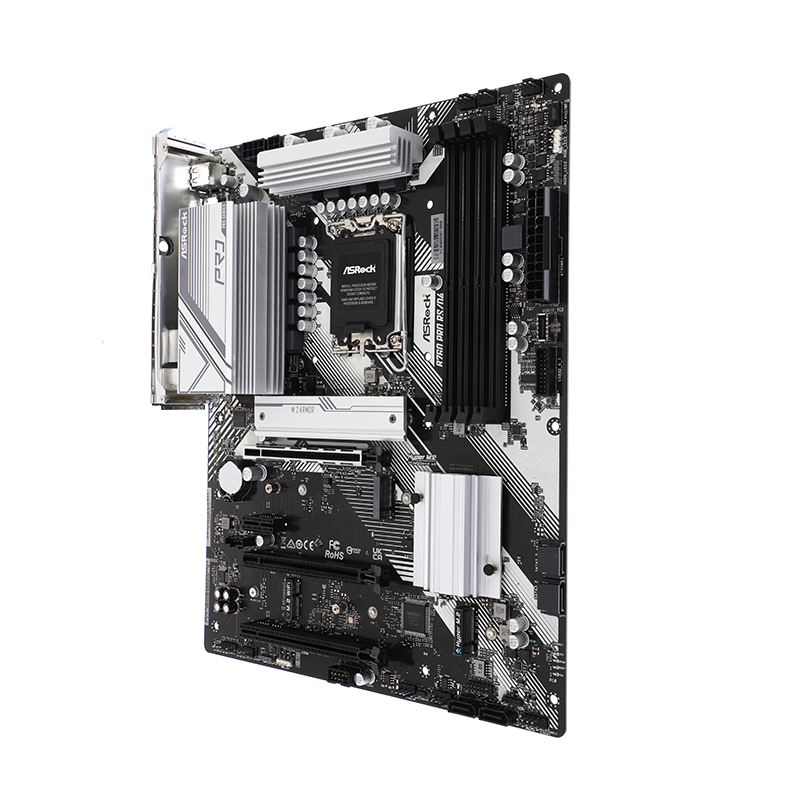

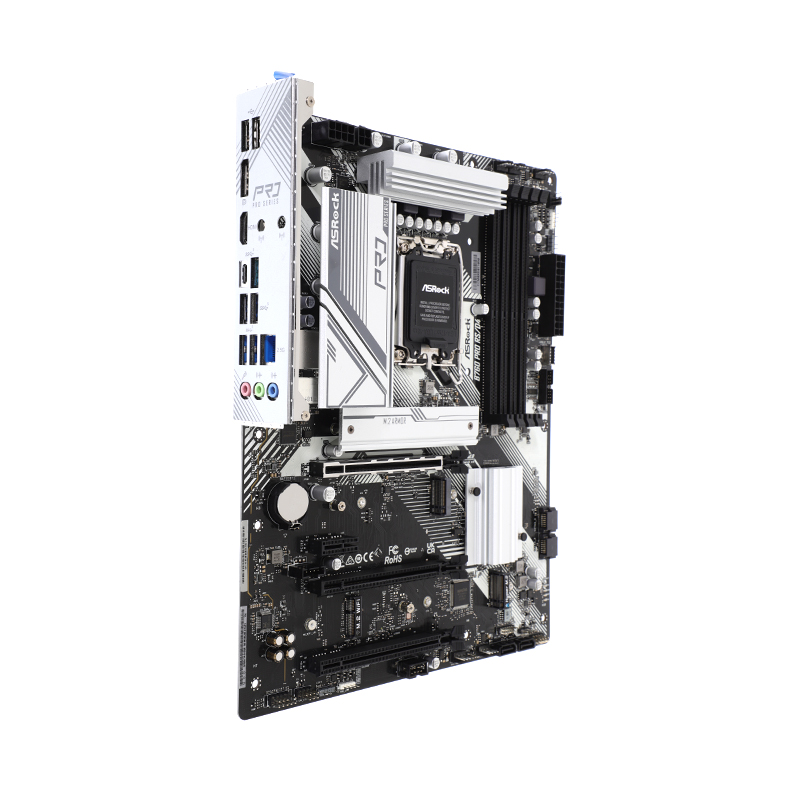

Name: MAINBOARD (1700) ASROCK B760 PRO RS DDR4
Brand: Asrock
SKU: 3000000148528
Price: 3990.00 THB
Availability: InStock

Asrock

ซื้อ MAINBOARD (1700) ASROCK B760 PRO RS DDR4 ที่ Mercular เพื่อนสนุกทุก Hobby ของแท้ ประกันศูนย์ไทย ส่งฟรี โปรโมชั่นเด็ด

MAINBOARD (1700) ASROCK B760 PRO RS DDR4

ส่งฟรี

ประกันศูนย์

ของแท้ 100%

<table border="1" cellpadding="8" cellspacing="0"><thead><tr><th>คุณสมบัติ</th><th>รายละเอียด</th></tr></thead><tbody><tr><td>Brand</td><td>ASROCK</td></tr><tr><td>Model</td><td>B760 Pro RS/D4</td></tr><tr><td>CPU Support</td><td>- Supports 13th Gen &amp; 12th Gen Intel&reg; Core&trade; Processors (LGA1700)
- Supports Intel&reg; Hybrid Technology
- Supports Intel&reg; Turbo Boost Max 3.0 Technology
- Supports Intel&reg; Thermal Velocity Boost (TVB)
- Supports Intel&reg; Adaptive Boost Technology (ABT)</td></tr><tr><td>CPU Brand</td><td>Intel</td></tr><tr><td>Socket</td><td>1700</td></tr><tr><td>Chipset</td><td>Intel&reg; B760</td></tr><tr><td>Memory Support</td><td>- Dual Channel DDR4 Memory Technology
- 4 x DDR4 DIMM Slots
- Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)*
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 128GB
- Supports Intel&reg; Extreme Memory Profile (XMP) 2.0

*1DPC 1R Up to 5333+ MHz (OC), 3200 MHz Natively.
1DPC 2R Up to 4400+ MHz (OC), 3200 MHz Natively.
2DPC 1R Up to 4266+ MHz (OC), 3200 MHz Natively.
2DPC 2R Up to 4000+ MHz (OC), 3200 MHz Natively.</td></tr><tr><td>Maximum Memory Bus</td><td>5333</td></tr><tr><td>Graphics</td><td>- Intel&reg; Xe Graphics Architecture (Gen 12)
- 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

*Intel&reg; UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.</td></tr><tr><td>Multi Graphic Support</td><td>Supports AMD CrossFire&trade;</td></tr><tr><td>Audio</td><td>7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Nahimic Audio</td></tr><tr><td>Expansion Slots</td><td>CPU:
- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*

Chipset:
- 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode*
- 1 x PCIe 3.0 x16 Slot (PCIE4), supports x1 mode*
- 1 x PCIe 3.0 x1 Slot (PCIE2)*
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel&reg; CNVio/CNVio2 (Integrated WiFi/BT)
- Supports AMD CrossFire&trade;

*Supports NVMe SSD as boot disks</td></tr><tr><td>Maximum PCIe Version</td><td>PCIe 4.0</td></tr><tr><td>Storage</td><td>CPU:
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

Chipset:
- 1 x M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
- 4 x SATA3 6.0 Gb/s Connectors

*Supports Intel&reg; Volume Management Device (VMD)
Supports NVMe SSD as boot disks</td></tr><tr><td>M.2 Storage Type Support</td><td>NVMe</td></tr><tr><td>M.2 Slot</td><td>2</td></tr><tr><td>USB</td><td>- 1 x USB 3.2 Gen2 Type-C (Front)
- 1 x USB 3.2 Gen1 Type-C (Rear)
- 7 x USB 3.2 Gen1 Type-A (5 Rear, 2 Front)
- 4 x USB 2.0 (2 Rear, 2 Front)
* All USB ports support ESD Protection</td></tr><tr><td>Internal I/O Connectors</td><td>- 1 x SPI TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 2 x RGB LED Headers*
- 2 x Addressable LED Headers**
- 1 x CPU Fan Connector (4-pin)***
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
- 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 1 x Thunderbolt&trade; AIC Connector (5-pin) (Supports ASRock Thunderbolt&trade; 4 AIC Card)
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
- 1 x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s

* Support in total up to 12V/3A, 36W LED Strip

**Support in total up to 5V/3A, 15W LED Strip

***CPU_FAN1 supports the fan power up to 1A (12W).

****CPU_FAN2/WP supports the fan power up to 2A (24W).

*****CHA_FAN1~5/WP support the fan power up to 2A (24W).

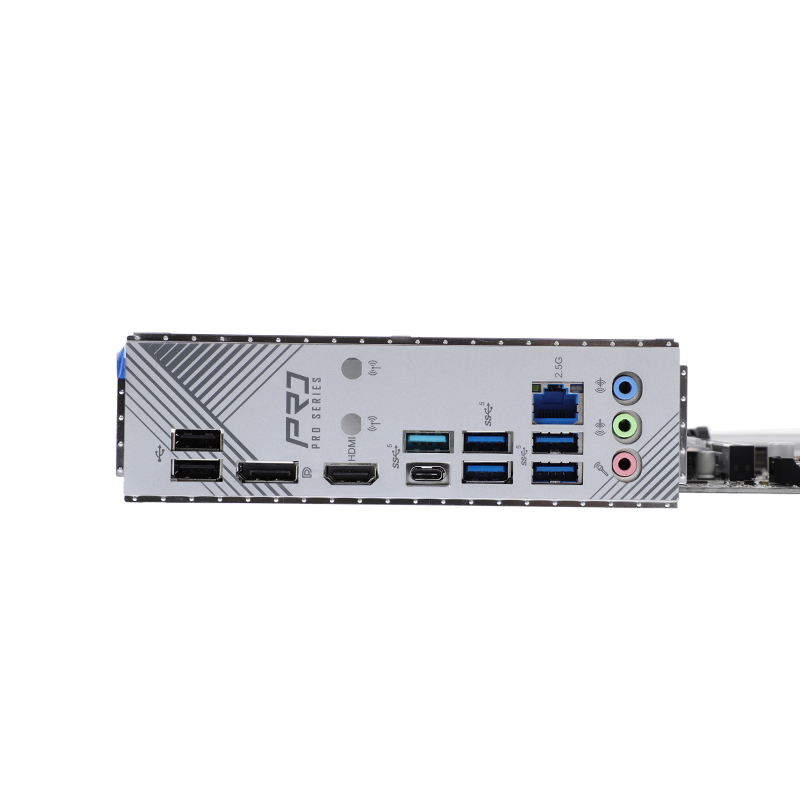

CPU_FAN2/WP and CHA_FAN1~5/WP can auto detect if 3-pin or 4-pin fan is in use.</td></tr><tr><td>Back Panel Connectors</td><td>- 2 x Antenna Mounting Points
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 1 x USB 3.2 Gen1 Type-C Port
- 5 x USB 3.2 Gen1 Type-A Ports
- 2 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- HD Audio Jacks: Line in / Front Speaker / Microphone</td></tr><tr><td>LAN</td><td>- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
- Dragon RTL8125BG
- Supports Dragon 2.5G LAN Software
- Smart Auto Adjust Bandwidth Control
- Visual User Friendly UI
- Visual Network Usage Statistics
- Optimized Default Setting for Game, Browser, and Streaming Modes
- User Customized Priority Control</td></tr><tr><td>Wireless Data Network</td><td>None</td></tr><tr><td>Form Factor</td><td>ATX</td></tr><tr><td>H/W Monitoring</td><td>N/A</td></tr><tr><td>BIOS</td><td>128Mb AMI UEFI Legal BIOS with GUI support</td></tr><tr><td>Special Features</td><td>Rock-Solid Durability
- 7+1+1 Power Phase, 50A Dr.MOS for VCore+GT
- Pre-Installed I/O Shield
- ASRock Intel&reg; 4-Layer Memory POOL (Planes on Outer Layers) Technology
Ultrafast Connectivity
- 2.5G LAN EZ Update
- ASRock Auto Driver Installer
EZ Troubleshooter
- ASRock Post Status Checker</td></tr><tr><td>Software Features</td><td>Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock Dragon 2.5G LAN Software
- ASRock Polychrome SYNC*
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
- ASRock Easy RAID Installer

*These utilities can be downloaded from ASRock Live Update &amp; APP Shop.</td></tr><tr><td>Operating System Support</td><td>Microsoft&reg; Windows&reg; 10 64-bit / 11 64-bit</td></tr><tr><td>Package Contents</td><td>1 x User Manual
2 x SATA Data Cables
4 x Screws for M.2 Sockets
1 x Standoff for M.2 Socket</td></tr><tr><td>Dimension (cm)</td><td>(W x L x H) : 30.50 x 24.40 x 0.00 cm</td></tr><tr><td>Package Dimension (cm)</td><td>(W x L x H) : 29.50 x 36.00 x 7.00 cm</td></tr><tr><td>Net Weight (kg)</td><td>0.00 kg</td></tr><tr><td>Gross Weight (kg)</td><td>1.50 kg</td></tr><tr><td>Volume (cm³)</td><td>7,434.00 kg</td></tr></tbody></table>
