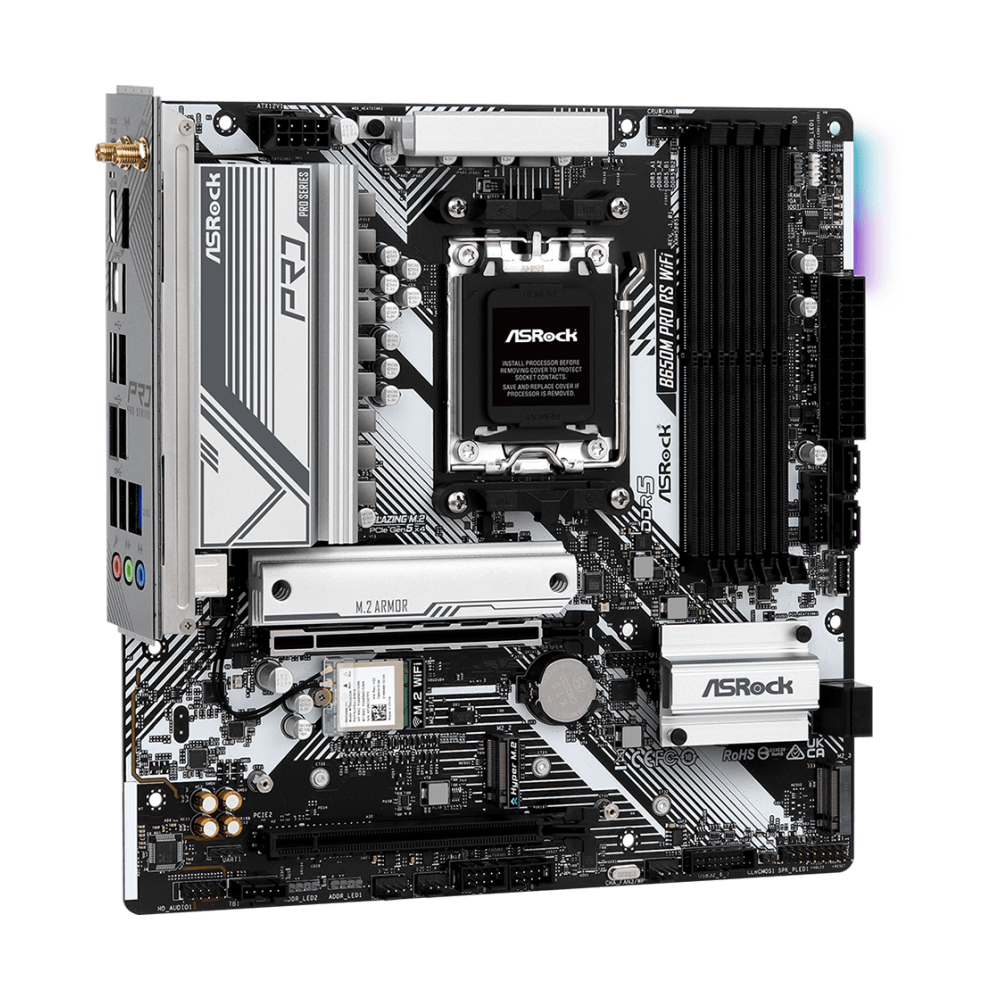

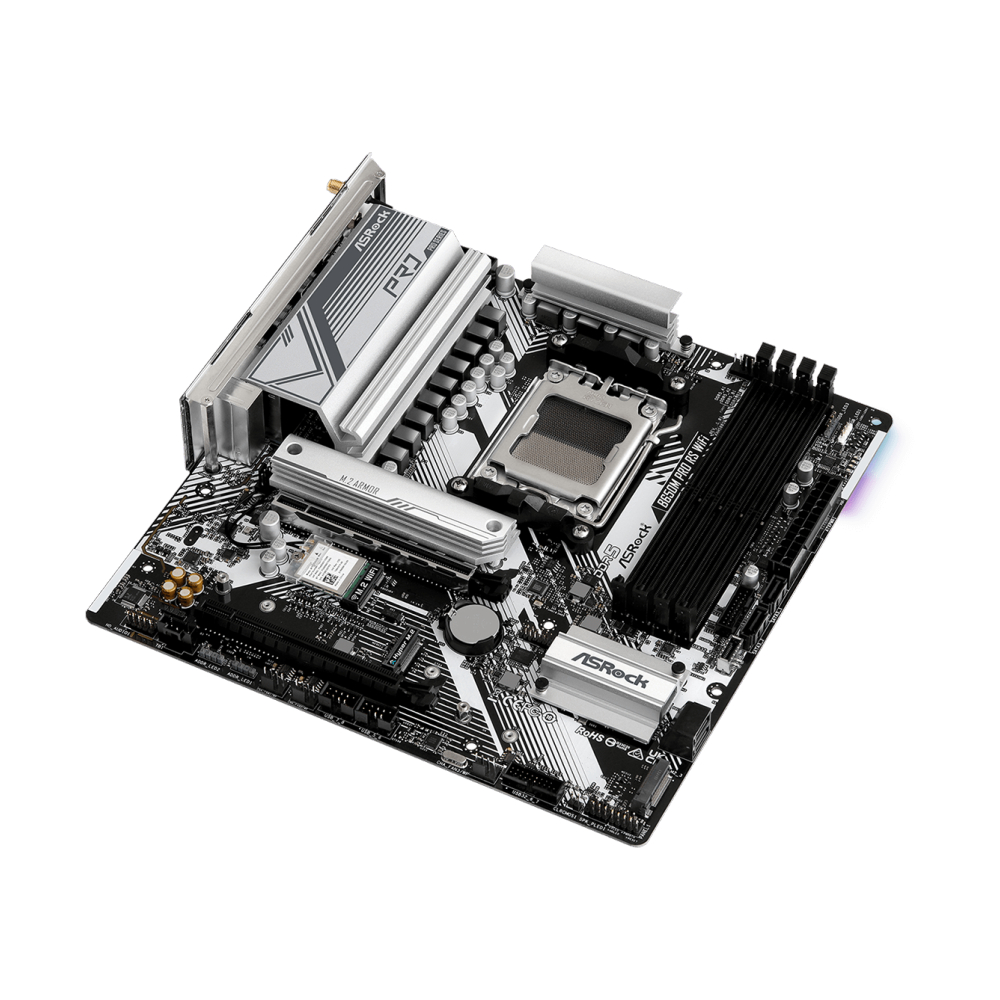

Name: MAINBOARD (AM5) ASROCK B650M PRO RS WIFI DDR5 (REV. 1.0)
Brand: Asrock
SKU: 3000000183159
Price: 4290.00 THB
Availability: InStock

Asrock

ซื้อ MAINBOARD (AM5) ASROCK B650M PRO RS WIFI DDR5 (REV. 1.0) ที่ Mercular เพื่อนสนุกทุก Hobby ของแท้ ประกันศูนย์ไทย ส่งฟรี โปรโมชั่นเด็ด

MAINBOARD (AM5) ASROCK B650M PRO RS WIFI DDR5 (REV. 1.0)

PAYDAY 3% (24-28 June 26)

ส่งฟรี

ประกันศูนย์

ของแท้ 100%

<table border="1" cellpadding="8" cellspacing="0"><thead><tr><th>คุณสมบัติ</th><th>รายละเอียด</th></tr></thead><tbody><tr><td>Model</td><td>B650M PRO RS WIFI DDR5 (REV. 1.0)</td></tr><tr><td>CPU Support</td><td>Supports AMD Socket AM5 Ryzen&trade; 9000, 8000 and 7000 Series Processors*

*The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details.</td></tr><tr><td>Socket</td><td>AM5</td></tr><tr><td>Chipset</td><td>AMD B650</td></tr><tr><td>Memory Support</td><td>Dual Channel DDR5 Memory Technology
4 x DDR5 DIMM Slots
Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)*
Max. capacity of system memory: 256GB
Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

*Please refer to Memory Support List for more information.</td></tr><tr><td>LAN</td><td>2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Dragon RTL8125BG
Supports Dragon 2.5G LAN Software
Smart Auto Adjust Bandwidth Control
Visual User Friendly UI
Visual Network Usage Statistics
Optimized Default Setting for Game, Browser, and Streaming Modes
User Customized Priority Control</td></tr><tr><td>Operating System Support</td><td>Microsoft Windows&reg; 10 64-bit / 11 64-bit</td></tr><tr><td>M.2 Storage Type Support</td><td>NVMe</td></tr><tr><td>Package Contents</td><td>1 x User Manual
2 x SATA Data Cables
2 x ASRock WiFi 2.4/5/6 GHz Antennas
3 x Screws for M.2 Sockets
1 x Standoff for M.2 Socket</td></tr><tr><td>M.2 Slot</td><td>3</td></tr><tr><td>Multi Graphic Support</td><td>Supports AMD CrossFire&trade;</td></tr><tr><td>BIOS</td><td>256Mb AMI UEFI Legal BIOS with GUI support</td></tr><tr><td>CPU Brand</td><td>AMD</td></tr><tr><td>Brand</td><td>ASROCK</td></tr><tr><td>Audio</td><td>7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Nahimic Audio</td></tr><tr><td>Expansion Slots</td><td>CPU:
1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode*

Chipset:
1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module*
Supports AMD CrossFire&trade;
15&mu; Gold Contact in VGA PCIe Slot (PCIE1)

*Supports NVMe SSD as boot disks</td></tr><tr><td>Graphics</td><td>Integrated AMD RDNA&trade; graphics (Actual support may vary by CPU)
1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz</td></tr><tr><td>Storage</td><td>CPU:
1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode*

Chipset:
1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
1 x M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode*

4 x SATA3 6.0 Gb/s Connectors

*Supports NVMe SSD as boot disks

RAID
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*

*Requires additional M.2 NVMe expansion cards to support RAID 10</td></tr><tr><td>USB</td><td>1 x USB 3.2 Gen2 Type-C (Rear)
1 x USB 3.2 Gen2 Type-A (Rear)
1 x USB 3.2 Gen1 Type-C (Front)
6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front)
8 x USB 2.0 (4 Rear, 4 Front)

*All USB ports support ESD Protection</td></tr><tr><td>Internal I/O Connectors</td><td>1 x SPI TPM Header
1 x Power LED and Speaker Header
1 x RGB LED Header*
3 x Addressable LED Headers**
1 x CPU Fan Connector (4-pin)***
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
1 x Front Panel Audio Connector
1 x Thunderbolt&trade; AIC Connector (5-pin) (Supports ASRock Thunderbolt&trade; 4 AIC Card)
2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen1 Header

*Supports in total up to 12V/3A, 36W LED Strip.

** Support in total up to 5V/3A, 15W LED Strip

*** CPU_FAN1 supports the fan power up to 1A (12W).

**** CPU_FAN2/WP supports the fan power up to 2A (24W).

***** CHA_FAN1~3/WP support the fan power up to 2A (24W).

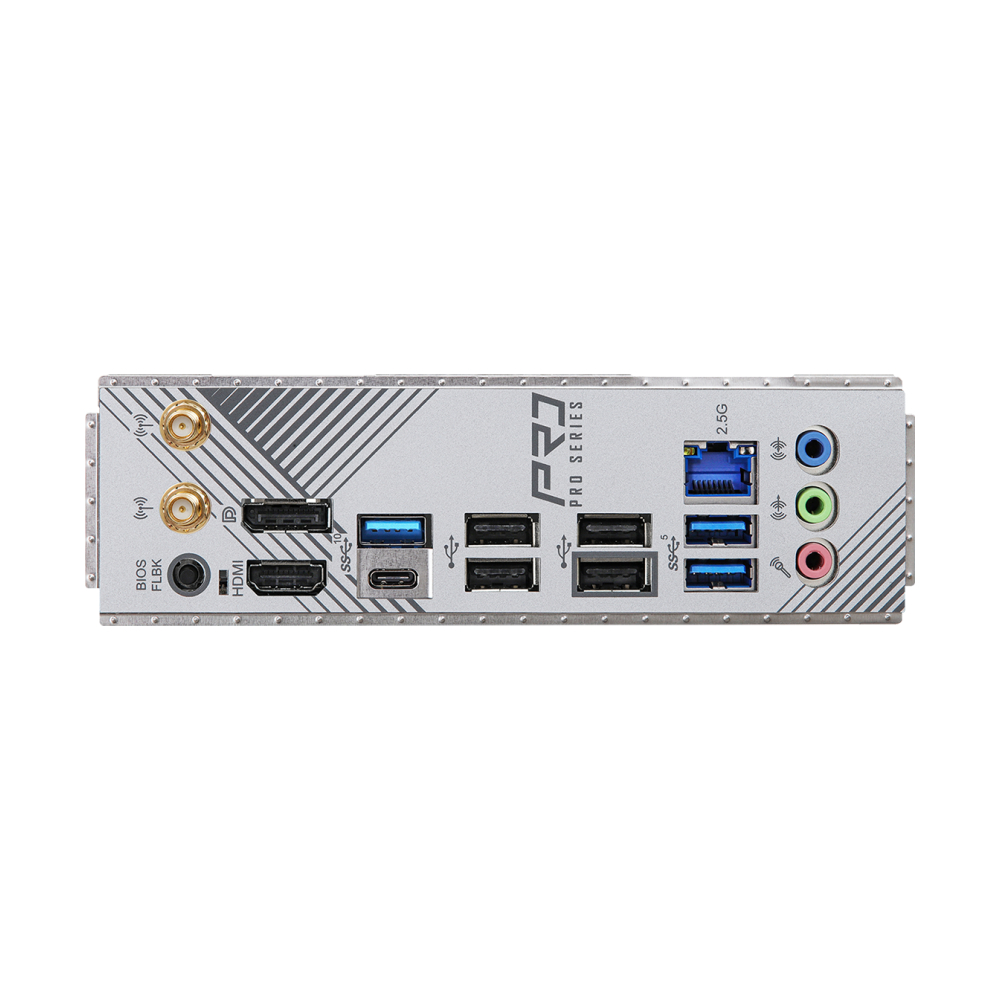

CPU_FAN2/WP and CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.</td></tr><tr><td>Back Panel Connectors</td><td>2 x Antenna Ports
1 x HDMI Port
1 x DisplayPort 1.4
1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
2 x USB 3.2 Gen1 Ports
4 x USB 2.0 Ports
1 x RJ-45 LAN Port
1 x BIOS Flashback Button
HD Audio Jacks: Line in / Front Speaker / Microphone</td></tr><tr><td>H/W Monitoring</td><td>N/A</td></tr><tr><td>Maximum PCIe Version</td><td>PCIe 4.0</td></tr><tr><td>Form Factor</td><td>Micro ATX</td></tr><tr><td>Wireless Data Network</td><td>802.11ax Wi-Fi 6E Module
Supports IEEE 802.11a/b/g/n/ac/ax
Supports Dual-Band 2x2 with extended 6GHz band* support
2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
Supports Bluetooth 5.2 + High speed class II
Supports MU-MIMO

*Wi-Fi 6E (6GHz band) will be supported by Microsoft Windows&reg; 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows&reg; Update and software updates once available.
A 6GHz compatible router is required for 6E functionality.</td></tr><tr><td>Maximum Memory Bus</td><td>7200</td></tr><tr><td>Special Features</td><td>Superb Productivity
- PCIe Gen5 (M.2)
- Dual Channel DDR5

Rock-Solid Durability
- 8+2+1 Power Phase, 50A Dr.MOS
- Pre-Installed I/O Shield

Ultrafast Connectivity
- 2.5G LAN, 802.11ax Wi-Fi 6E Module

EZ Update
- BIOS Flashback Button
- ASRock Auto Driver Installer

EZ Troubleshooter
- ASRock Post Status Checker</td></tr><tr><td>Software Features</td><td>Software
ASRock Motherboard Utility (A-Tuning)
ASRock Dragon 2.5G LAN Software
ASRock Polychrome SYNC*

UEFI
ASRock Full HD UEFI
ASRock Auto Driver Installer
ASRock Instant Flash

*These utilities can be downloaded from ASRock Live Update &amp; APP Shop.</td></tr><tr><td>Dimension (cm)</td><td>(W x L x H) : 24.40 x 24.40 x 0.00 cm</td></tr><tr><td>Package Dimension (cm)</td><td>(W x L x H) : 0.00 x 0.00 x 0.00 cm</td></tr><tr><td>Net Weight (kg)</td><td>0.00 kg</td></tr><tr><td>Gross Weight (kg)</td><td>0.00 kg</td></tr><tr><td>Volume (cm³)</td><td>0.00 kg</td></tr></tbody></table>
