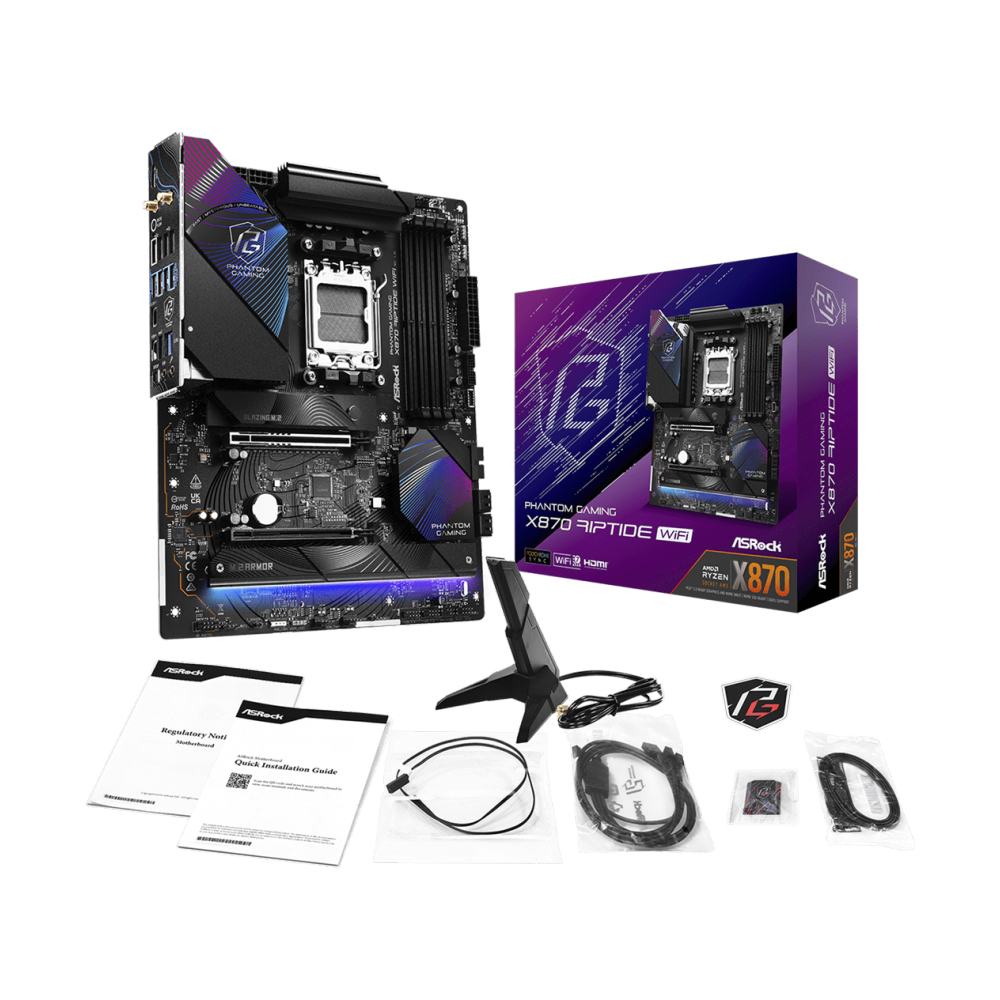

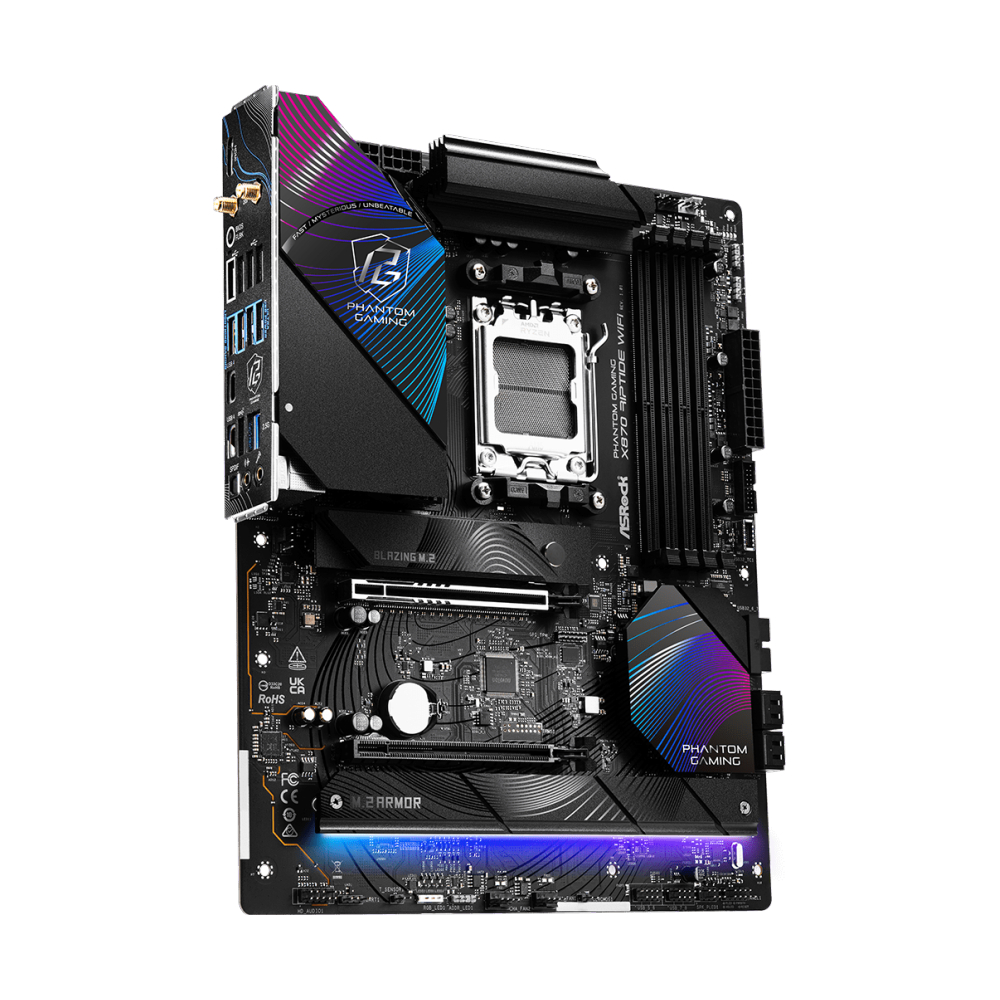

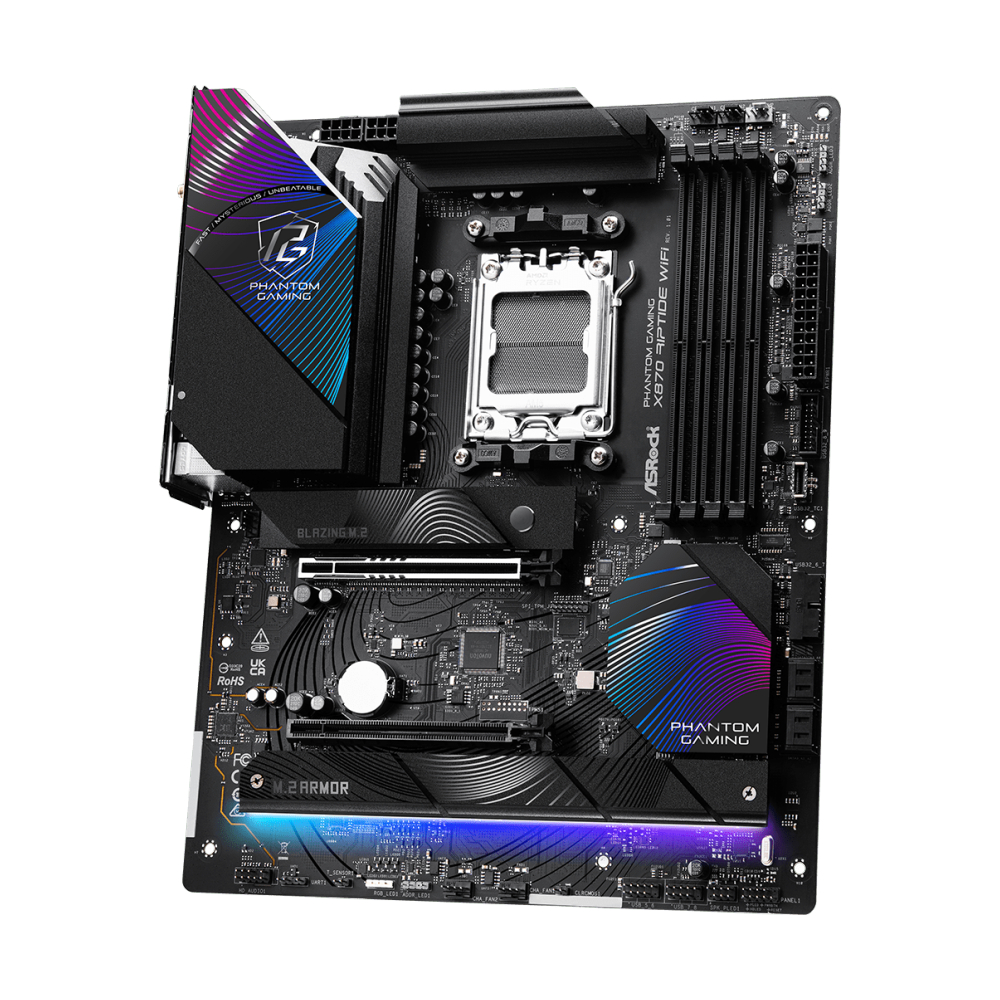

Name: MAINBOARD (AM5) ASROCK X870 RIPTIDE WIFI DDR5
Brand: Asrock
SKU: 3000000183160
Price: 9490.00 THB
Availability: InStock

Asrock

ซื้อ MAINBOARD (AM5) ASROCK X870 RIPTIDE WIFI DDR5 ที่ Mercular เพื่อนสนุกทุก Hobby ของแท้ ประกันศูนย์ไทย ส่งฟรี โปรโมชั่นเด็ด

MAINBOARD (AM5) ASROCK X870 RIPTIDE WIFI DDR5

PAYDAY 3% (24-28 June 26)

ส่งฟรี

ประกันศูนย์

ของแท้ 100%

<table border="1" cellpadding="8" cellspacing="0"><thead><tr><th>คุณสมบัติ</th><th>รายละเอียด</th></tr></thead><tbody><tr><td>Model</td><td>X870 RIPTIDE WIFI DDR5</td></tr><tr><td>CPU Support</td><td>Supports AMD Socket AM5 Ryzen&trade; 9000, 8000 and 7000 Series Processors

*The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details.</td></tr><tr><td>Socket</td><td>AM5</td></tr><tr><td>Chipset</td><td>AMD X870</td></tr><tr><td>Memory Support</td><td>Dual Channel DDR5 Memory Technology
4 x DDR5 DIMM Slots
Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)*
Max. capacity of system memory: 256GB
Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

*Please refer to Memory Support List on ASRock&#39;s website for more information.</td></tr><tr><td>LAN</td><td>2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Killer E3100G
Supports Killer LAN Software</td></tr><tr><td>Operating System Support</td><td>Microsoft Windows&reg; 10 64-bit / 11 64-bit</td></tr><tr><td>M.2 Storage Type Support</td><td>NVMe</td></tr><tr><td>Package Contents</td><td>2 x SATA Data Cables
1 x ASRock WiFi 2.4/5/6 GHz Antenna
1 x ARGB Splitter Cable
1 x Thermistor Cable</td></tr><tr><td>M.2 Slot</td><td>3</td></tr><tr><td>Multi Graphic Support</td><td>N/A</td></tr><tr><td>BIOS</td><td>256Mb AMI UEFI Legal BIOS with GUI support</td></tr><tr><td>CPU Brand</td><td>AMD</td></tr><tr><td>Brand</td><td>ASROCK</td></tr><tr><td>Audio</td><td>7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec)
Individual PCB Layers for R/L Audio Channel
Direct Drive Technology on Front headphone port (Supports up to 600 Ohm headsets)
Nahimic Audio</td></tr><tr><td>Expansion Slots</td><td>CPU:
1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*

Chipset:
1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode*

1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Supports AMD CrossFire&trade;
15&mu; Gold Contact in VGA PCIe Slot (PCIE1)

* PCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors.
If M2_3 is occupied, PCIE2 will be disabled.
Supports NVMe SSD as boot disks</td></tr><tr><td>Graphics</td><td>Integrated AMD RDNA&trade; graphics (Actual support may vary by CPU)
- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
- 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz*

* Only the CPU&#39;s embedded graphics can be displayed through USB4 ports. If you want to display to a Type-C monitor, please use AM5 Ryzen&trade; 9000, 8000 and 7000 processors with embedded graphics.</td></tr><tr><td>Storage</td><td>CPU:
1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*

Chipset:
1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

ASMedia ASM1061:
4 x SATA3 6.0 Gb/s Connectors

* Supports NVMe SSD as boot disks
M2_1 is the first priority for M.2 installation.
M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4 with 8000 (Phoenix 1 and Phoenix 2) series processors.
If M2_3 is occupied, PCIE2 will be disabled.

RAID
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*

* Requires additional M.2 NVMe expansion cards to support RAID 10</td></tr><tr><td>USB</td><td>CPU:
2 x USB4 Type-C (Rear)
1 x USB 3.2 Gen2 Type-A (Rear (USB32_3))
1 x USB 3.2 Gen1 Type-A (Rear (USB32_1))

Chipset:
1 x USB 3.2 Gen2x2 Type-C (Front)
1 x USB 3.2 Gen2 Type-A (Rear (USB32_4))
6 x USB 3.2 Gen1 Type-A (2 Rear (USB32_2 and USB32_5), 4 Front)
8 x USB 2.0 (4 Rear, 4 Front)

* All USB ports support ESD Protection</td></tr><tr><td>Internal I/O Connectors</td><td>1 x Thermistor Cable Header
1 x SPI TPM Header
1 x Power LED and Speaker Header
1 x RGB LED Header*
3 x Addressable LED Headers**
2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)***
3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***
1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
1 x Front Panel Audio Connector
2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)

* Supports in total up to 12V/3A, 36W LED Strip
** Support in total up to 5V/3A, 15W LED Strip
*** CPU_FAN1 supports the fan power up to 1A (12W).
CPU_FAN2, CHA_FAN1~3 and AIO_PUMP support the fan power up to 3A (36W).

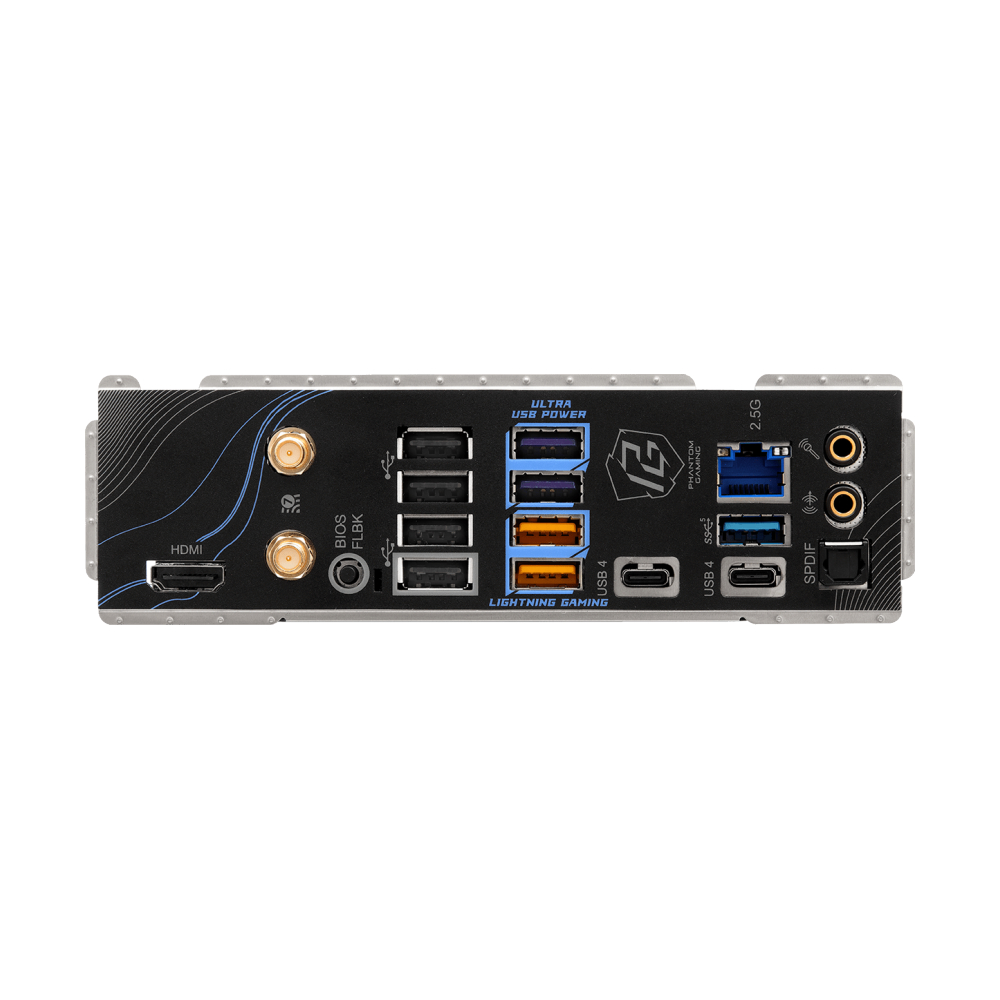

CPU_FAN2, CHA_FAN1~3 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use.</td></tr><tr><td>Back Panel Connectors</td><td>2 x Antenna Ports
1 x HDMI Port
1 x Optical SPDIF Out Port
2 x USB4 Type-C Ports (40 Gb/s)*
3 x USB 3.2 Gen1 Type-A Ports (USB32_12 are Lightning Gaming Ports.)
2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_34 supports Ultra USB Power.)**
4 x USB 2.0 Ports
1 x RJ-45 LAN Port
1 x BIOS Flashback Button
1 x Line Out Jack (Gold Audio Jack)
1 x Microphone Input Jack (Gold Audio Jack)

* Supports USB PD 3.0 up to 5V@3A (15W) charging

** Device exceeds USB 3.2 Type-A power rating of 5V@0.9A (4.5W) may trigger over-current protection (OCP), will require system reboot to restore USB power.</td></tr><tr><td>H/W Monitoring</td><td>N/A</td></tr><tr><td>Maximum PCIe Version</td><td>PCIe 5.0</td></tr><tr><td>Form Factor</td><td>ATX</td></tr><tr><td>Wireless Data Network</td><td>802.11be 2x2 Wi-Fi 7 Module
Supports IEEE 802.11a/b/g/n/ac/ax/axe/be
Supports 2.4GHz/5GHz/6GHz* frequency band
Supports 160MHz channel bandwidth with 6GHz* frequency band
1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology
Supports Bluetooth 5.4
Supports MU-MIMO

*The Wi-Fi 7 module is supported by Microsoft Windows&reg; 11 only. There is no driver available for Windows&reg; 10. The availability of the 6GHz band will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows&reg; Update and software updates once available.</td></tr><tr><td>Maximum Memory Bus</td><td>8000</td></tr><tr><td>Special Features</td><td>Superb Productivity
- PCIe Gen5 (Graphics, M.2)
- Dual Channel DDR5
- USB4 Type-C Ports (40 Gb/s)

Rock-Solid Durability
- 14+2+1 Power Phase, 80A Dr.MOS for VCore+SOC with Enlarged Heatsink Armor
- Flexible Integrated I/O Shield
- 20K Long-lasting Black Caps (high quality and conductive polymer capacitors)

Ultrafast Gaming
- Killer 2.5G LAN, 802.11be Wi-Fi 7 Module
- ASRock Lightning Gaming Ports

EZ Update
- BIOS Flashback Button
- ASRock Auto Driver Installer

EZ Troubleshooter
- ASRock Post Status Checker</td></tr><tr><td>Software Features</td><td>Software
- ASRock Motherboard Utility (Phantom Gaming Tuning)
- Killer Control Center
- ASRock Polychrome SYNC*

UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash

*These utilities can be downloaded from ASRock Live Update &amp; APP Shop.</td></tr><tr><td>Dimension (cm)</td><td>(W x L x H) : 30.50 x 24.40 x 0.00 cm</td></tr><tr><td>Package Dimension (cm)</td><td>(W x L x H) : 35.00 x 28.00 x 7.50 cm</td></tr><tr><td>Net Weight (kg)</td><td>0.00 kg</td></tr><tr><td>Gross Weight (kg)</td><td>2.16 kg</td></tr><tr><td>Volume (cm³)</td><td>7,350.00 kg</td></tr></tbody></table>
