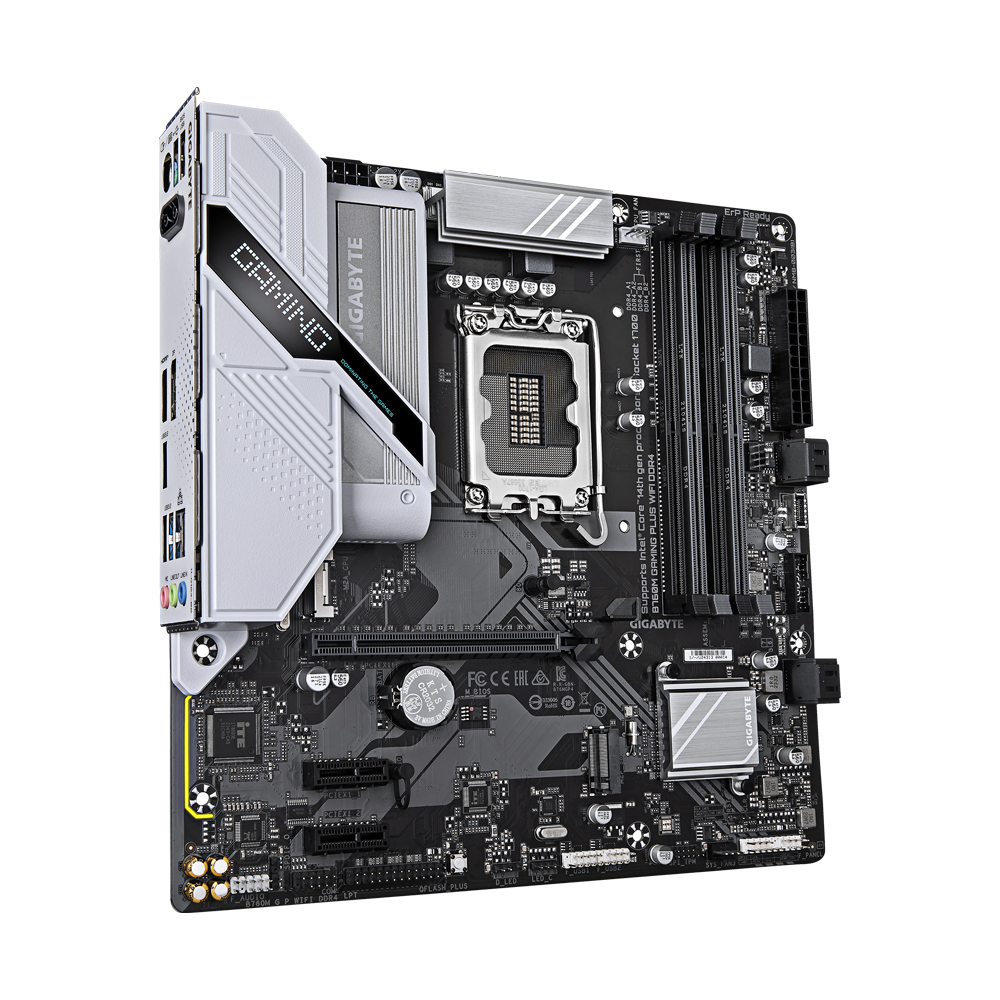

Name: MAINBOARD (1700) GIGABYTE B760M GAMING PLUS WIFI DDR4 (REV. 1.1)
Brand: Gigabyte
SKU: 3000000181703
Price: 3390.00 THB
Availability: InStock

Gigabyte

ซื้อ MAINBOARD (1700) GIGABYTE B760M GAMING PLUS WIFI DDR4 (REV. 1.1) ที่ Mercular เพื่อนสนุกทุก Hobby ของแท้ ประกันศูนย์ไทย ส่งฟรี โปรโมชั่นเด็ด

MAINBOARD (1700) GIGABYTE B760M GAMING PLUS WIFI DDR4 (REV. 1.1)

ส่งฟรี

ประกันศูนย์

ของแท้ 100%

<table border="1" cellpadding="8" cellspacing="0"><thead><tr><th>คุณสมบัติ</th><th>รายละเอียด</th></tr></thead><tbody><tr><td>Model</td><td>B760M GAMING PLUS WIFI DDR4 (Rev. 1.1)</td></tr><tr><td>CPU Support</td><td>LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel&reg; Core&trade;, Pentium&reg; Gold and Celeron&reg; Processors
L3 cache varies with CPU

(Please refer &quot;CPU Support List&quot; for more information.)</td></tr><tr><td>Socket</td><td>1700</td></tr><tr><td>Chipset</td><td>Intel&nbsp;B760</td></tr><tr><td>Memory Support</td><td>Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/3200/3000/2933/2666/2400/2133 MT/s memory modules

4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to &quot;Memory Support List&quot; on GIGABYTE&#39;s website for more information.)</td></tr><tr><td>Graphics</td><td>Integrated Graphics Processor-Intel&reg; HD Graphics support:

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.

- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3


(Graphics specifications may vary depending on CPU support.)</td></tr><tr><td>LAN</td><td>Realtek&reg; GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)</td></tr><tr><td>Form Factor</td><td>Micro ATX</td></tr><tr><td>Operating System Support</td><td>Support for Windows 11 64-bit
Support for Windows 10 64-bit</td></tr><tr><td>Package Contents</td><td>N/A</td></tr><tr><td>M.2 Storage Type Support</td><td>NVMe</td></tr><tr><td>Multi Graphic Support</td><td>None</td></tr><tr><td>M.2 Slot</td><td>2</td></tr><tr><td>Wireless Data Network</td><td>Realtek&reg; Wi-Fi 6 RTL8851BE
- WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard

(Actual data rate may vary depending on environment and equipment.)

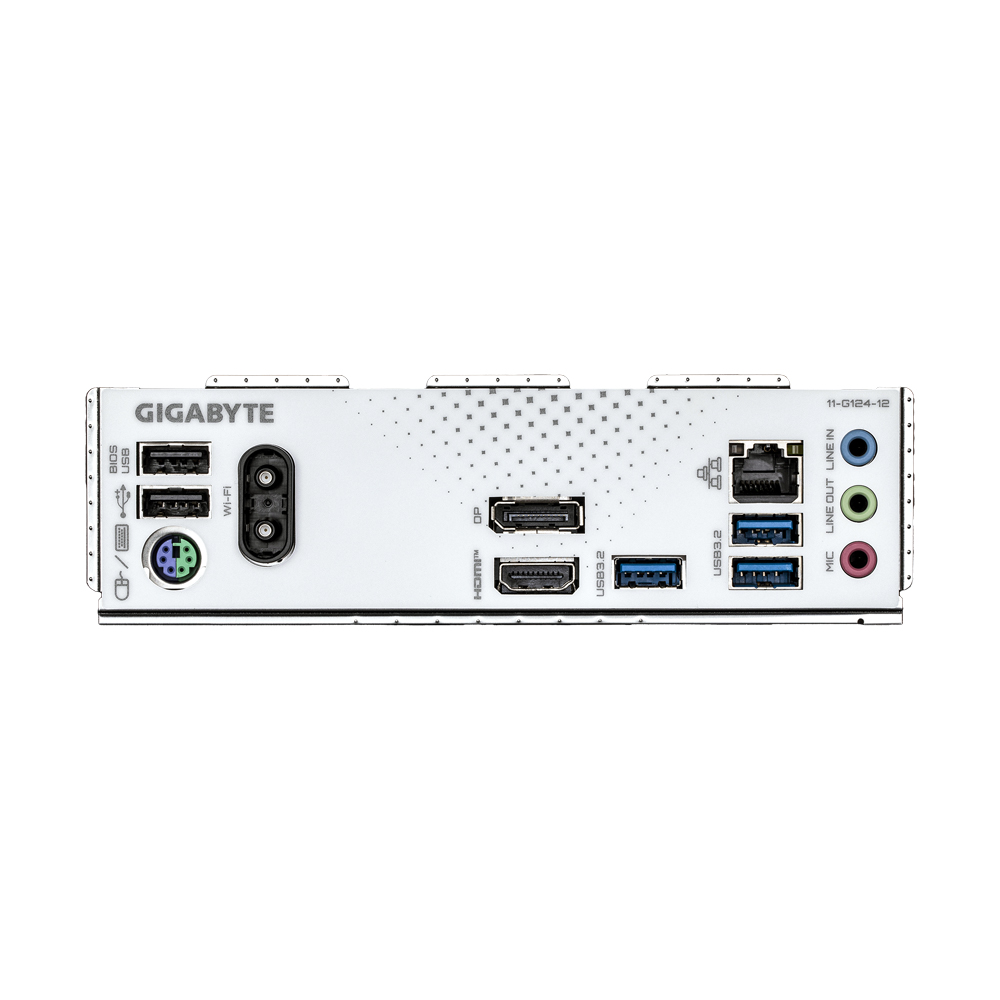

* Bluetooth version may change with updates. See the Wi-Fi chip vendor&rsquo;s website for details.</td></tr><tr><td>CPU Brand</td><td>Intel</td></tr><tr><td>Brand</td><td>GIGABYTE</td></tr><tr><td>Maximum Memory Bus</td><td>5333</td></tr><tr><td>Maximum PCIe Version</td><td>PCIe 4.0</td></tr><tr><td>Back Panel Connectors</td><td>2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
2 x antenna connectors (1T1R)
1 x DisplayPort (Note)
1 x HDMI port (Note)
3 x USB 3.2 Gen 1 ports
1 x RJ-45 port
3 x audio jacks

(Note) Actual support may vary by CPU.</td></tr><tr><td>Internal I/O Connectors</td><td>1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C&reg; header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x parallel port header
1 x S/PDIF Out header
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper</td></tr><tr><td>Special Features</td><td>Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup</td></tr><tr><td>Storage</td><td>CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

- 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices</td></tr><tr><td>Expansion Slots</td><td>CPU:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.

Chipset:
- 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1</td></tr><tr><td>USB</td><td>Chipset:
- 1 x USB Type-C&reg; port with USB 3.2 Gen 1 support, available through the internal USB header
- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
- 2 x USB 2.0/1.1 ports on the back panel

Chipset+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports available through the internal USB headers</td></tr><tr><td>H/W Monitoring</td><td>Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control

* Whether the fan speed control function is supported will depend on the fan you install.</td></tr><tr><td>Software Features</td><td>Norton&reg; Internet Security (OEM version)</td></tr><tr><td>BIOS</td><td>1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0</td></tr><tr><td>Audio</td><td>Realtek&reg; Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Support for S/PDIF Out</td></tr><tr><td>Dimension (cm)</td><td>(W x L x H) : 24.40 x 24.40 x 0.00 cm</td></tr><tr><td>Package Dimension (cm)</td><td>(W x L x H) : 26.70 x 27.50 x 6.70 cm</td></tr><tr><td>Net Weight (kg)</td><td>0.00 kg</td></tr><tr><td>Gross Weight (kg)</td><td>1.11 kg</td></tr><tr><td>Volume (cm³)</td><td>4,919.48 kg</td></tr></tbody></table>
