Name: MAINBOARD (1851) GIGABYTE B860M C DDR5 WIFI7 (REV. 1.0)
Brand: Gigabyte
SKU: 3000000181971
Price: 4350.00 THB
Availability: InStock

Gigabyte

ซื้อ MAINBOARD (1851) GIGABYTE B860M C DDR5 WIFI7 (REV. 1.0) ที่ Mercular เพื่อนสนุกทุก Hobby ของแท้ ประกันศูนย์ไทย ส่งฟรี โปรโมชั่นเด็ด

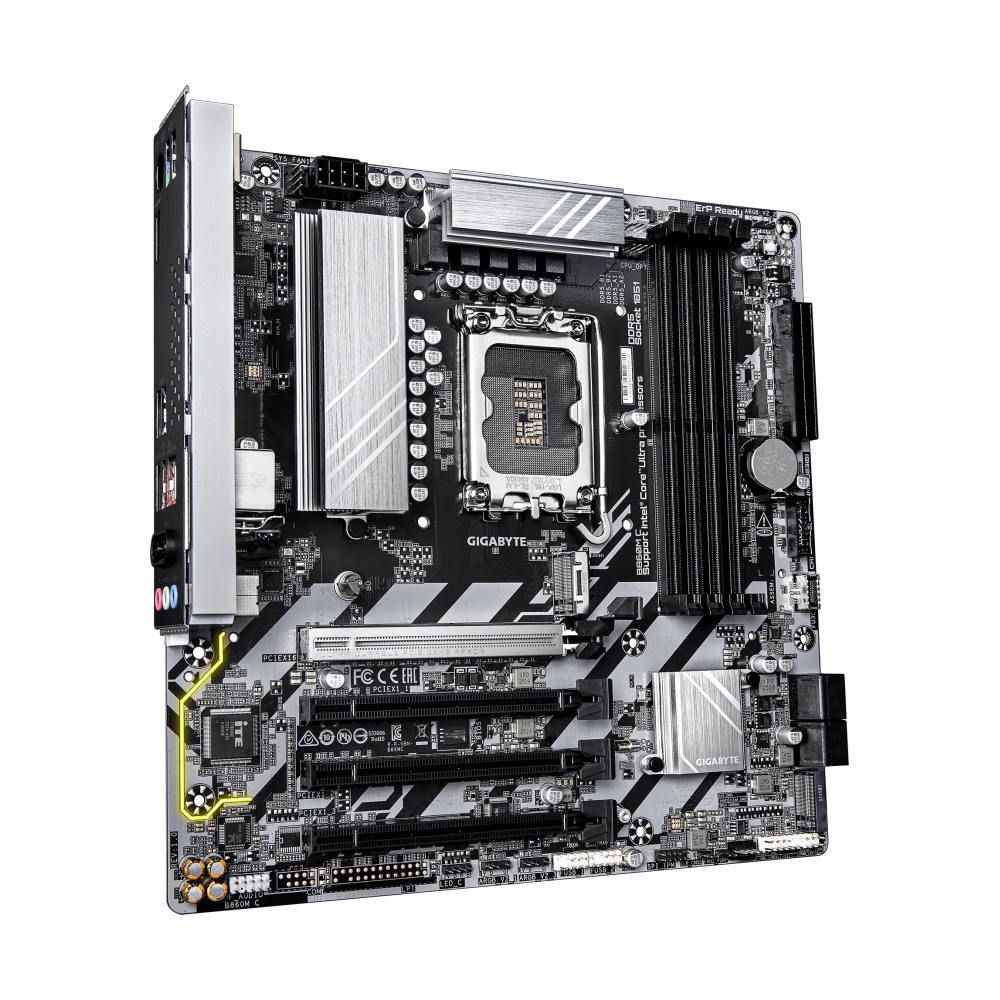

MAINBOARD (1851) GIGABYTE B860M C DDR5 WIFI7 (REV. 1.0)

ส่งฟรี

ประกันศูนย์

ของแท้ 100%

<table border="1" cellpadding="8" cellspacing="0"><thead><tr><th>คุณสมบัติ</th><th>รายละเอียด</th></tr></thead><tbody><tr><td>Model</td><td>B860M C DDR5 WIFI7 (REV. 1.0)</td></tr><tr><td>CPU Support</td><td>LGA1851 socket: Support for Intel&reg; Core&trade; Ultra Processors
(Go to GIGABYTE&#39;s website for the latest CPU support list.)
L3 cache varies with CPU</td></tr><tr><td>Socket</td><td>1851</td></tr><tr><td>Chipset</td><td>Intel&nbsp;B860</td></tr><tr><td>Memory Support</td><td>Support for DDR5 9066(O.C) / 8800(O.C) /8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s memory modules

4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to &quot;Memory Support List&quot; on GIGABYTE&#39;s website for more information.)</td></tr><tr><td>Graphics</td><td>Integrated Graphics Processor-Intel&reg; HD Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.

(Graphics specifications may vary depending on CPU support.)</td></tr><tr><td>LAN</td><td>Realtek&reg; 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)</td></tr><tr><td>Form Factor</td><td>Micro ATX</td></tr><tr><td>Operating System Support</td><td>Support for Windows 11 64-bit</td></tr><tr><td>Package Contents</td><td>N/A</td></tr><tr><td>M.2 Storage Type Support</td><td>NVMe</td></tr><tr><td>Multi Graphic Support</td><td>None</td></tr><tr><td>M.2 Slot</td><td>2</td></tr><tr><td>Wireless Data Network</td><td>Realtek&reg; Wi-Fi 7 RTL8922AE
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)

* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
** Wi-Fi 7 channels on 6 GHz band availability depends on individual country&#39;s regulations.

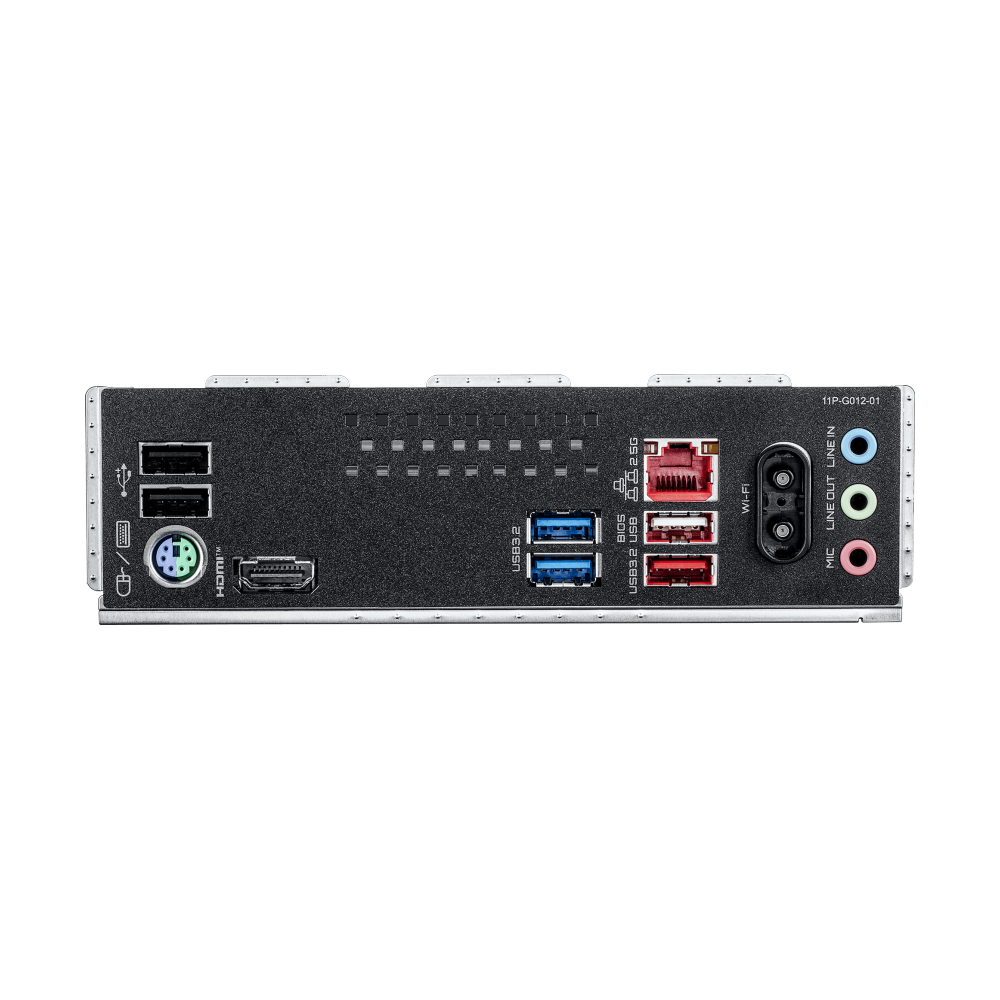

*** Bluetooth version may change with updates. See the Wi-Fi chip vendor&rsquo;s website for details.</td></tr><tr><td>CPU Brand</td><td>Intel</td></tr><tr><td>Brand</td><td>GIGABYTE</td></tr><tr><td>Maximum Memory Bus</td><td>9066</td></tr><tr><td>Maximum PCIe Version</td><td>PCIe 5.0</td></tr><tr><td>Back Panel Connectors</td><td>1 x PS/2 keyboard/mouse port
1 x HDMI port*
1 x USB 3.2 Gen 2 Type-A port (red)
2 x USB 3.2 Gen 1 ports
3 x USB 2.0/1.1 ports
2 x antenna connectors (2T2R)
1 x RJ-45 port
3 x audio jacks
* Actual support may vary by CPU.</td></tr><tr><td>Internal I/O Connectors</td><td>1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
1 x system fan header
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C&reg; header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper</td></tr><tr><td>Special Features</td><td>Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup</td></tr><tr><td>Storage</td><td>CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)

Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2N_SB)

- 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices</td></tr><tr><td>Expansion Slots</td><td>CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:
- 3 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1 (PCIEX1_1/2/3)</td></tr><tr><td>USB</td><td>Chipset:
- 1 x USB Type-C&reg; port with USB 3.2 Gen 1 support, available through the internal USB header
- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
- 3 x USB 2.0/1.1 ports on the back panel

Chipset+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports available through the internal USB headers</td></tr><tr><td>H/W Monitoring</td><td>Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control

* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.</td></tr><tr><td>Software Features</td><td>Norton&reg; Internet Security (OEM version)</td></tr><tr><td>BIOS</td><td>1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0</td></tr><tr><td>Audio</td><td>Realtek&reg; Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.</td></tr><tr><td>Dimension (cm)</td><td>(W x L x H) : 24.40 x 24.40 x 0.00 cm</td></tr><tr><td>Package Dimension (cm)</td><td>(W x L x H) : 26.80 x 27.50 x 6.60 cm</td></tr><tr><td>Net Weight (kg)</td><td>0.00 kg</td></tr><tr><td>Gross Weight (kg)</td><td>1.12 kg</td></tr><tr><td>Volume (cm³)</td><td>4,864.20 kg</td></tr></tbody></table>
