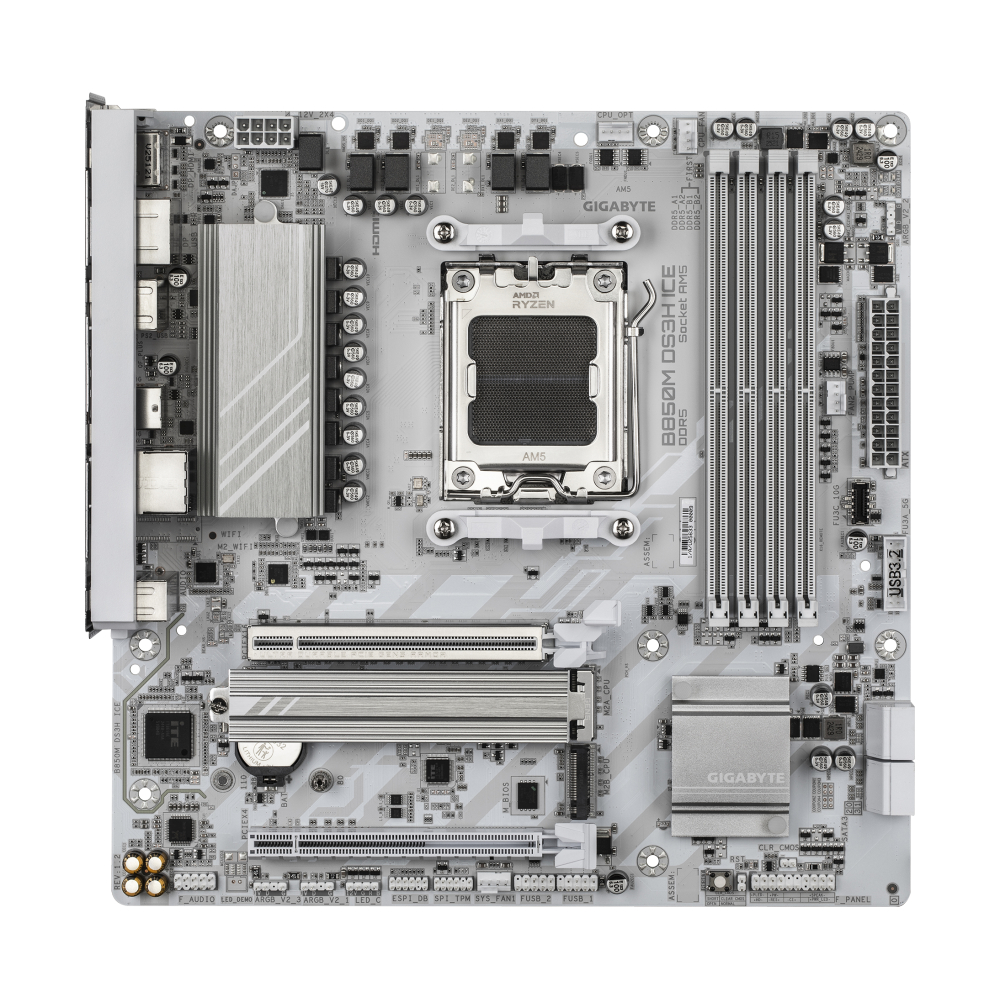

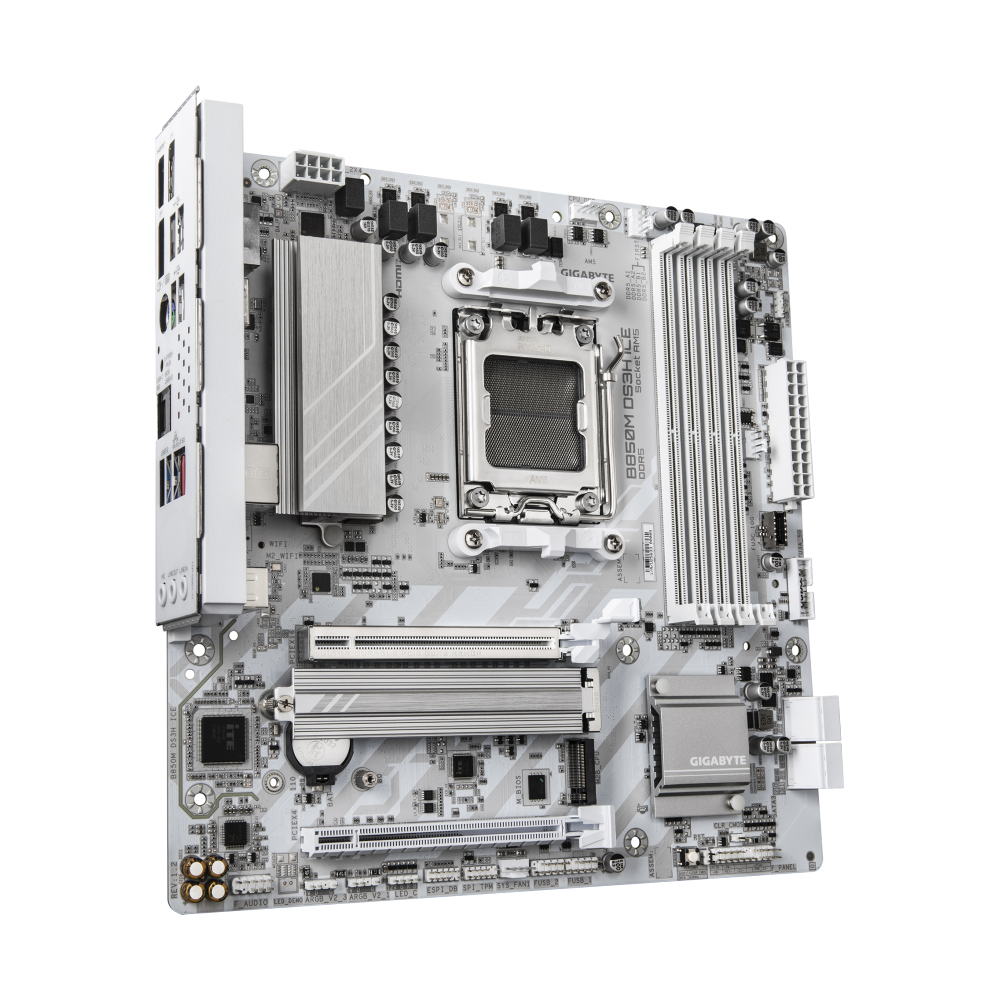

Name: MAINBOARD (AM5) GIGABYTE B850M DS3H ICE DDR5 (REV. 1.2)
Brand: Gigabyte
SKU: 3000000181975
Price: 4690.00 THB
Availability: InStock

Gigabyte

ซื้อ MAINBOARD (AM5) GIGABYTE B850M DS3H ICE DDR5 (REV. 1.2) ที่ Mercular เพื่อนสนุกทุก Hobby ของแท้ ประกันศูนย์ไทย ส่งฟรี โปรโมชั่นเด็ด

MAINBOARD (AM5) GIGABYTE B850M DS3H ICE DDR5 (REV. 1.2)

ส่งฟรี

ประกันศูนย์

ของแท้ 100%

<table border="1" cellpadding="8" cellspacing="0"><thead><tr><th>คุณสมบัติ</th><th>รายละเอียด</th></tr></thead><tbody><tr><td>Model</td><td>B850M DS3H ICE DDR5 (REV. 1.2)</td></tr><tr><td>CPU Support</td><td>AMD Socket AM5, support for:
AMD Ryzen&trade; 9000 Series Processors/
AMD Ryzen&trade; 8000 Series Processors/
AMD Ryzen&trade; 7000 Series Processors
(Go to GIGABYTE&#39;s website for the latest CPU support list.)</td></tr><tr><td>Socket</td><td>AM5</td></tr><tr><td>Chipset</td><td>AMD B850</td></tr><tr><td>Memory Support</td><td>Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules

4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO&trade;) and Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to &quot;Memory Support List&quot; on GIGABYTE&#39;s website for more information.)</td></tr><tr><td>LAN</td><td>Realtek&reg; 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)</td></tr><tr><td>Operating System Support</td><td>Support for Windows 11 64-bit
Support for Windows 10 64-bit</td></tr><tr><td>M.2 Storage Type Support</td><td>NVMe</td></tr><tr><td>Package Contents</td><td>N/A</td></tr><tr><td>M.2 Slot</td><td>2</td></tr><tr><td>Multi Graphic Support</td><td>N/A</td></tr><tr><td>BIOS</td><td>1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0</td></tr><tr><td>CPU Brand</td><td>AMD</td></tr><tr><td>Brand</td><td>GIGABYTE</td></tr><tr><td>Audio</td><td>Realtek&reg; Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.</td></tr><tr><td>Expansion Slots</td><td>1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen&trade; 9000/7000 Series Processors support PCIe 5.0 x16 mode
AMD Ryzen&trade; 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen&trade; 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)</td></tr><tr><td>Graphics</td><td>Integrated Graphics Processor with AMD Radeon&trade; Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3, and HDR.
** Support for native HDMI 2.1 TMDS compatible ports.

- 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 1.4 version.

(Graphics specifications may vary depending on CPU support.)
Support for up to triple-display at the same time</td></tr><tr><td>Storage</td><td>1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
AMD Ryzen&trade; 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen&trade; 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen&trade; 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
AMD Ryzen&trade; 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen&trade; 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen&trade; 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs

4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
* RAID 5 is only available on AMD Ryzen&trade; 9000 Series Processors.

RAID 0, RAID 1, and RAID 10 support for SATA storage devices</td></tr><tr><td>USB</td><td>CPU:
- 1 x USB Type-C&reg; port on the back panel, with USB 3.2 Gen 2 support
- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

CPU+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports on the back panel

Chipset:
- 1 x USB Type-C&reg; port with USB 3.2 Gen 2 support, available through the internal USB header
- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
- 4 x USB 2.0/1.1 ports available through the internal USB headers</td></tr><tr><td>Internal I/O Connectors</td><td>1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
1 x system fan header
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x SATA 6Gb/s connectors
2 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C&reg; header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper</td></tr><tr><td>Back Panel Connectors</td><td>1 x HDMI port (Note)
2 x DisplayPorts (Note)
1 x Q-Flash Plus button
1 x PS/2 keyboard/mouse port
1 x USB 3.2 Gen 2 Type-A ports (red)
1 x USB Type-C&reg; port, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks

(Note) Actual support may vary by CPU</td></tr><tr><td>H/W Monitoring</td><td>Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control

* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install</td></tr><tr><td>Maximum PCIe Version</td><td>PCIe 5.0</td></tr><tr><td>Form Factor</td><td>Micro ATX</td></tr><tr><td>Wireless Data Network</td><td>None</td></tr><tr><td>Maximum Memory Bus</td><td>8200</td></tr><tr><td>Special Features</td><td>Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup</td></tr><tr><td>Software Features</td><td>Norton&reg; Internet Security (OEM version)</td></tr><tr><td>Dimension (cm)</td><td>(W x L x H) : 24.40 x 24.40 x 0.00 cm</td></tr><tr><td>Package Dimension (cm)</td><td>(W x L x H) : 0.00 x 0.00 x 0.00 cm</td></tr><tr><td>Net Weight (kg)</td><td>0.00 kg</td></tr><tr><td>Gross Weight (kg)</td><td>0.00 kg</td></tr><tr><td>Volume (cm³)</td><td>0.00 kg</td></tr></tbody></table>
