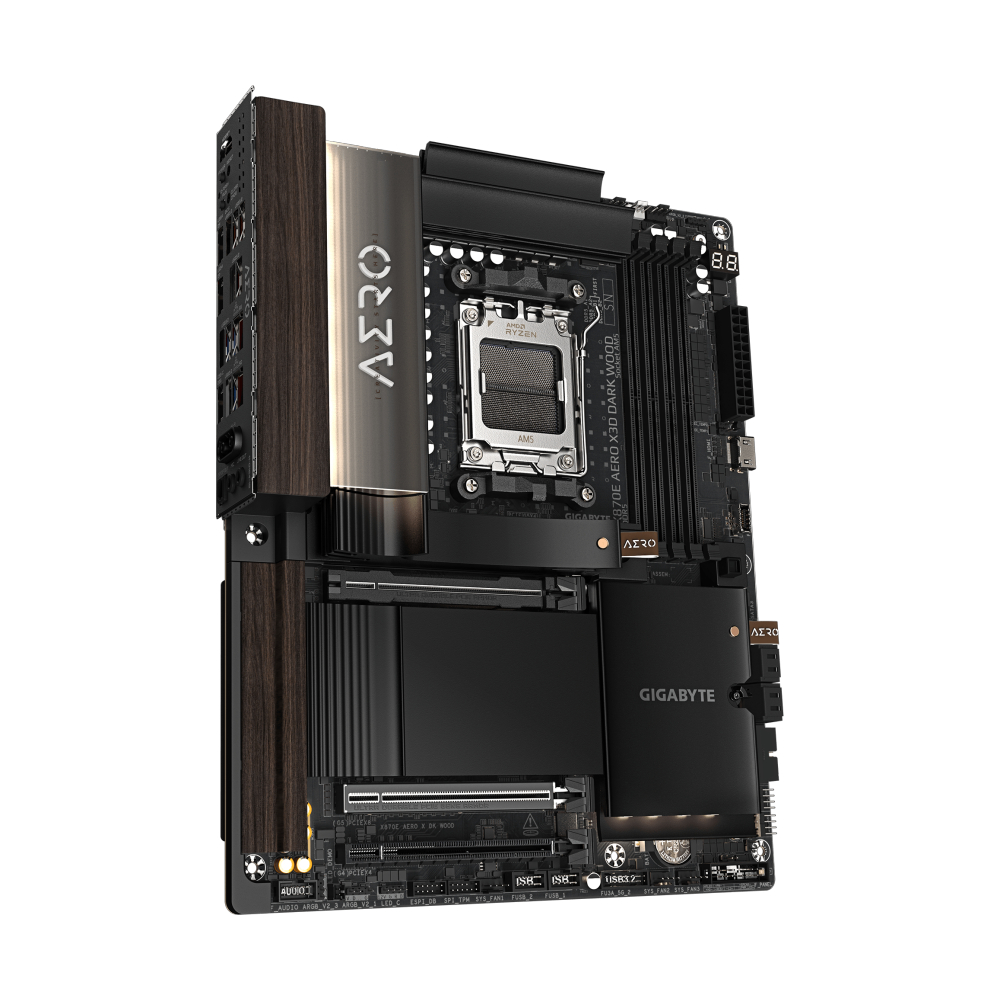

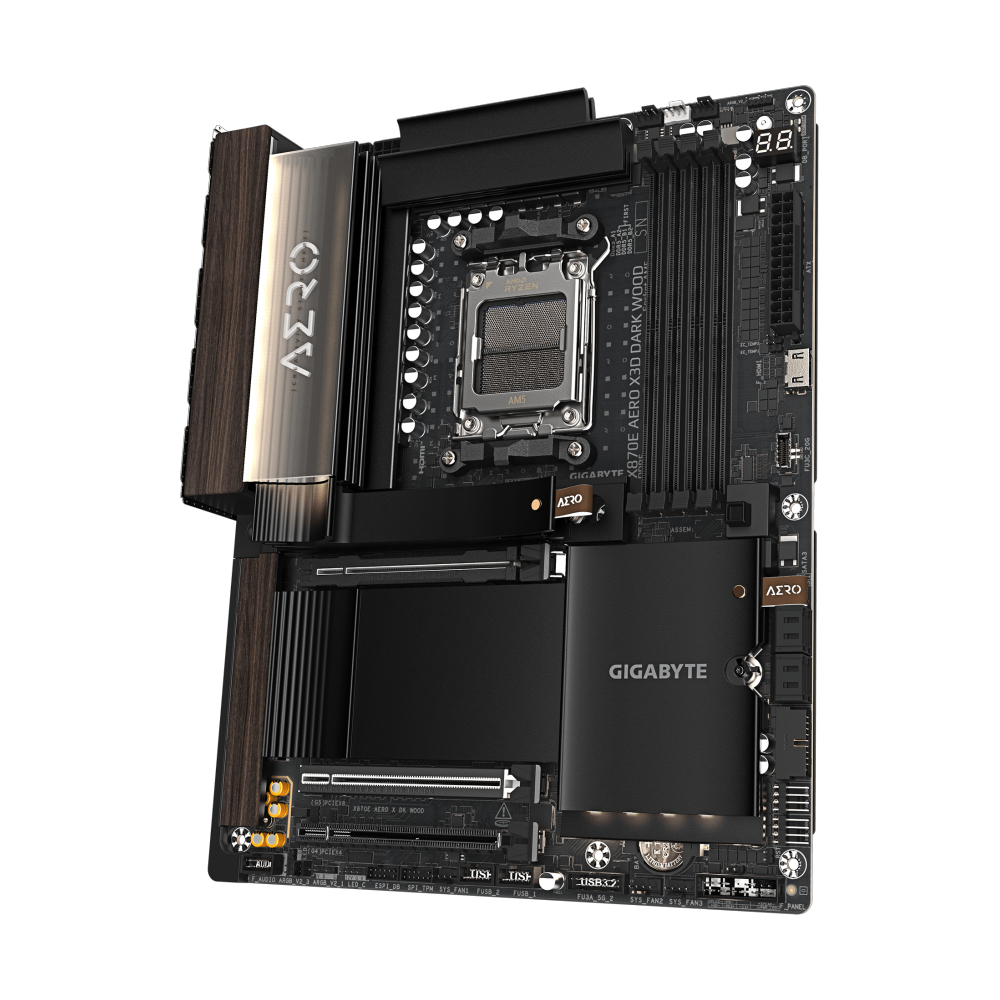

Name: MAINBOARD (AM5) GIGABYTE X870E AERO X3D DARK WOOD DDR5 (REV. 1.0)
Brand: Gigabyte
SKU: 3000000181973
Price: 14690.00 THB
Availability: InStock

Gigabyte

ซื้อ MAINBOARD (AM5) GIGABYTE X870E AERO X3D DARK WOOD DDR5 (REV. 1.0) ที่ Mercular เพื่อนสนุกทุก Hobby ของแท้ ประกันศูนย์ไทย ส่งฟรี โปรโมชั่นเด็ด

MAINBOARD (AM5) GIGABYTE X870E AERO X3D DARK WOOD DDR5 (REV. 1.0)

ส่งฟรี

ประกันศูนย์

ของแท้ 100%

<table border="1" cellpadding="8" cellspacing="0"><thead><tr><th>คุณสมบัติ</th><th>รายละเอียด</th></tr></thead><tbody><tr><td>Model</td><td>X870E AERO X3D DARK WOOD DDR5 (REV. 1.0)</td></tr><tr><td>CPU Support</td><td>AMD Socket AM5, support for:
AMD Ryzen&trade; 9000 Series Processors/
AMD Ryzen&trade; 8000 Series Processors/
AMD Ryzen&trade; 7000 Series Processors
(Go to GIGABYTE&#39;s website for the latest CPU support list.)</td></tr><tr><td>Socket</td><td>AM5</td></tr><tr><td>Chipset</td><td>AMD X870E</td></tr><tr><td>Memory Support</td><td>Support for DDR5 9000(O.C) /8800(O.C) /8600(O.C) /8400(O.C) / 8000(O.C) / 7800(O.C) / 7600(O.C) / 7800(O.C) / 7600(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.
Support for DDR5 5200/4800 MT/s memory modules

4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

Dual channel memory architecture
Support for non-ECC Un-buffered DIMM memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO&trade;) and Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to &quot;Memory Support List&quot; on GIGABYTE&#39;s website for more information.)</td></tr><tr><td>LAN</td><td>2 x Realtek&reg; 5GbE LAN chips (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)</td></tr><tr><td>Operating System Support</td><td>Support for Windows 11 64-bit</td></tr><tr><td>M.2 Storage Type Support</td><td>NVMe</td></tr><tr><td>Package Contents</td><td>N/A</td></tr><tr><td>M.2 Slot</td><td>4</td></tr><tr><td>Multi Graphic Support</td><td>N/A</td></tr><tr><td>BIOS</td><td>1 x 512 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0</td></tr><tr><td>CPU Brand</td><td>AMD</td></tr><tr><td>Brand</td><td>GIGABYTE</td></tr><tr><td>Audio</td><td>Realtek&reg; ALC1220 CODEC
* The back panel line out jack supports DSD audio.

High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Support for S/PDIF Out</td></tr><tr><td>Expansion Slots</td><td>1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen&trade; 9000/7000 Series Processors support PCIe 5.0 x16 mode
AMD Ryzen&trade; 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen&trade; 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.

* The PCIEX16 and PCIEX8 slots can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

1 x PCI Express x16 slot (PCIEX8), integrated in the CPU:
AMD Ryzen&trade; 9000/7000 Series Processors support PCIe 5.0 x8 mode

* The PCIEX8 slot becomes unavailable when an AMD Ryzen&trade; 8000 Series-Phoenix 1/Phoenix 2 processor is used.

Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)</td></tr><tr><td>Graphics</td><td>Integrated Graphics Processor with AMD Radeon&trade; Graphics support+ASMedia USB4&reg; Controller:
- 2 x USB4&reg; USB Type-C&reg; ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz
* Support for DisplayPort 1.4 version and HDR.

Integrated Graphics Processor with AMD Radeon&trade; Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
** Support for native HDMI 2.1 TMDS compatible ports.

- 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
* Support for HDMI 1.4 version.

(Graphics specifications may vary depending on CPU support.)</td></tr><tr><td>Storage</td><td>1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:

AMD Ryzen&trade; 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen&trade; 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen&trade; 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:

AMD Ryzen&trade; 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs

* The M2B_CPU connector shares bandwidth with the ASMedia USB4&reg; controller. When a device is installed in theM2B_CPU connector, both theM2B_CPU connector and the USB4 port supported by the ASMedia USB4&reg; controller operate at up to x2 bandwidth. When using an AMD Ryzen&trade; 8000 Series-Phoenix 1 or Phoenix 2
processor, the USB4 port supported by the ASMedia USB4&reg; controller operates at up to x2 bandwidth, and the M2B_CPU connector becomes unavailable.

2 x M.2 connectors (M2C_SB, M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs

4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

* RAID 5 is only available on AMD Ryzen&trade; 9000 Series Processors.

RAID 0, RAID 1, and RAID 10 support for SATA storage devices</td></tr><tr><td>USB</td><td>CPU+ASMedia USB4&reg; controller:
- 2 x USB4&reg; USB Type-C&reg; ports on the back panel

CPU:
- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
Chipset+USB 3.2 Gen 1 Hub:
- 4 x USB 3.2 Gen 1 ports available through the internal USB headers

Chipset:
- 2 x USB Type-C&reg; ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header)
- 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
- 3 x USB 3.2 Gen 1 ports on the back panel
- 4 x USB 2.0/1.1 ports available through the internal USB headers</td></tr><tr><td>Internal I/O Connectors</td><td>1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
2 x system fan/water cooling pump headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C&reg; header, with USB 3.2 Gen 2x2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x noise detection header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
1 x HDMI port (Note)
1 x reset jumper
1 x Clear CMOS jumper
2 x temperature sensor headers

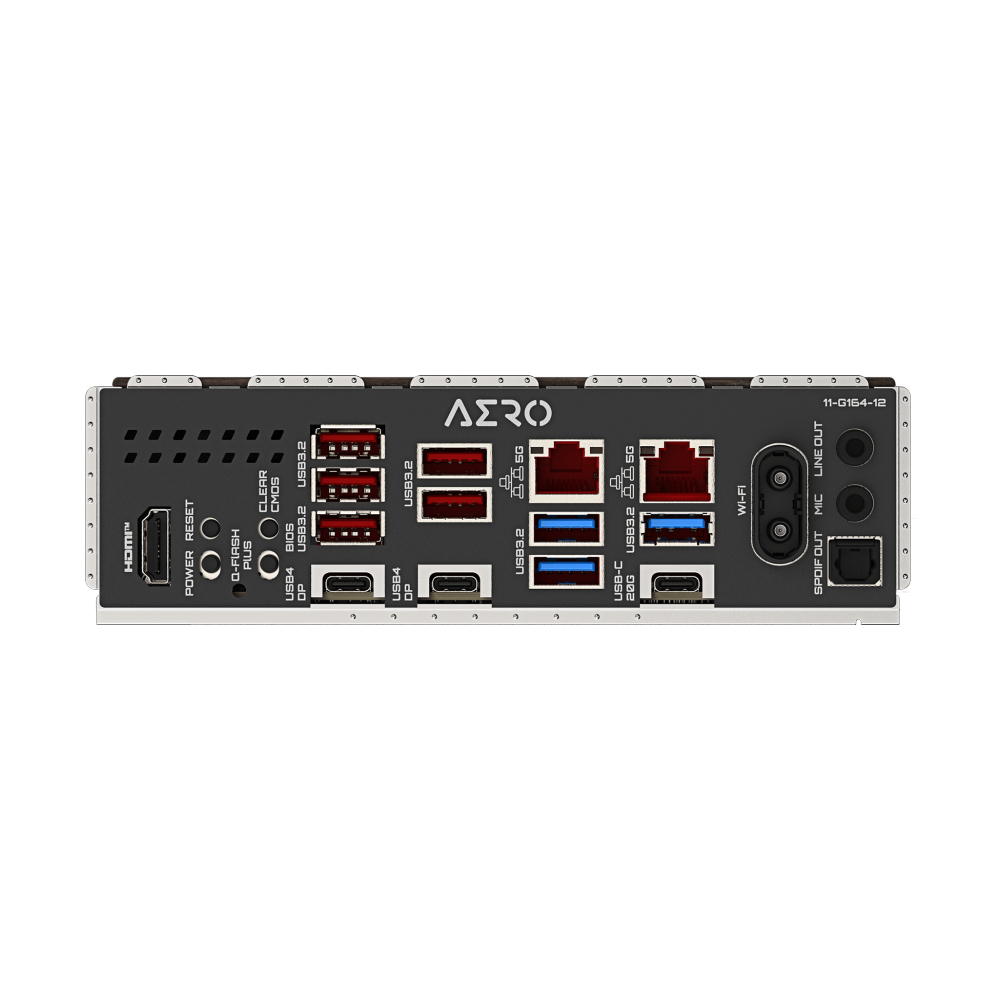

(Note) Actual support may vary by CPU.</td></tr><tr><td>Back Panel Connectors</td><td>1 x Q-Flash Plus button
1 x Clear CMOS button
1 x power button
1 x reset button
1 x HDMI port (Note)
2 x USB4&reg; USB Type-C&reg; ports (DisplayPorts (Note))
1 x USB Type-C&reg; port, with USB 3.2 Gen 2x2 support
5 x USB 3.2 Gen 2 Type-A ports (red)
3 x USB 3.2 Gen 1 ports
2 x RJ-45 ports
2 x antenna connectors (2T2R)
2 x audio jacks
1 x optical S/PDIF Out connector

(Note) Actual support may vary by CPU.</td></tr><tr><td>H/W Monitoring</td><td>Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

Noise detection</td></tr><tr><td>Maximum PCIe Version</td><td>PCIe 5.0</td></tr><tr><td>Form Factor</td><td>ATX</td></tr><tr><td>Wireless Data Network</td><td>MediaTek Wi-Fi 7 MT7927, RZ738
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 320MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)

* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
** Wi-Fi 7 channels on 6 GHz band availability depends on individual country&#39;s regulations.
***Bluetooth version may change with updates. See the Wi-Fi chip vendor&rsquo;s website for details.</td></tr><tr><td>Maximum Memory Bus</td><td>9000</td></tr><tr><td>Special Features</td><td>Support for GIGABYTE Control Center (GCC)
