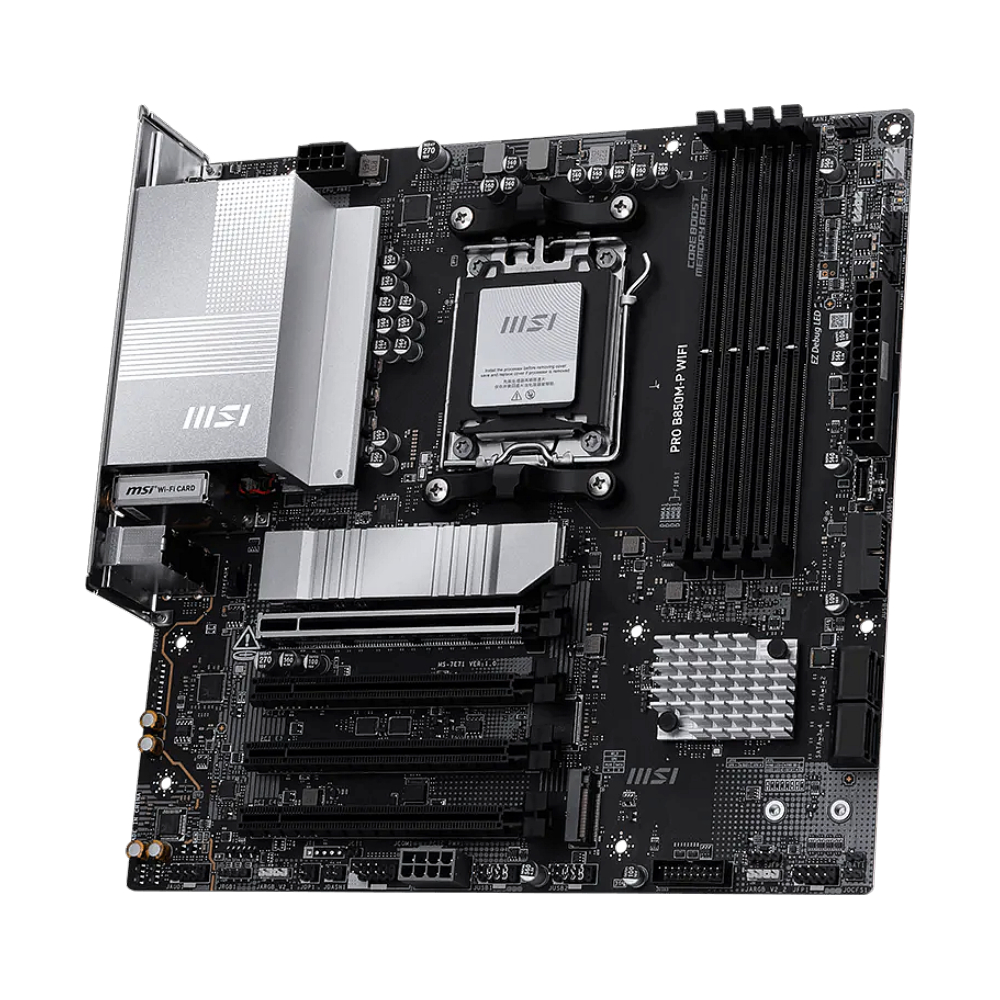

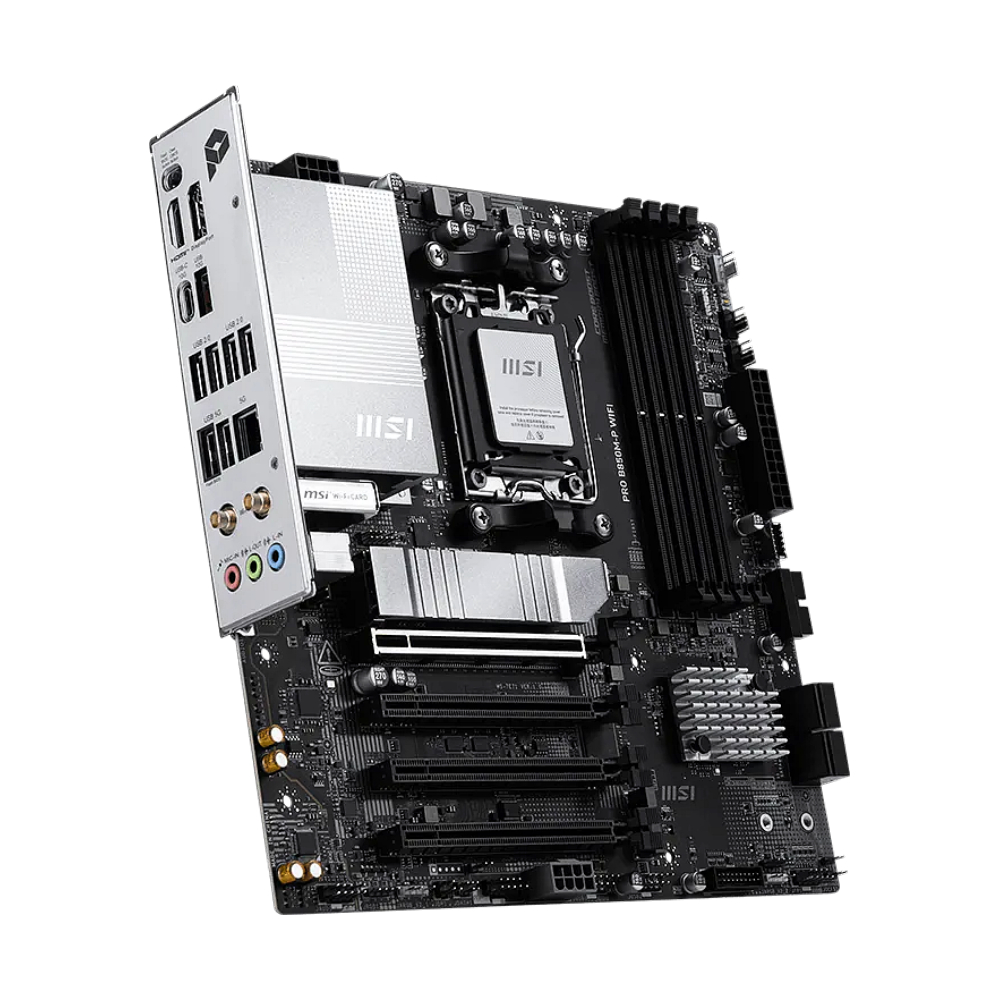

MAINBOARD (AM5) MSI PRO B850M-P WIFI DDR5

ส่งฟรี

ประกันศูนย์

ของแท้ 100%

<table border="1" cellpadding="8" cellspacing="0"><thead><tr><th>คุณสมบัติ</th><th>รายละเอียด</th></tr></thead><tbody><tr><td>Model</td><td>PRO B850M-P-WIFI DDR5</td></tr><tr><td>CPU Support</td><td>Supports AMD Ryzen&trade; 9000/ 8000/ 7000 Series Desktop Processors</td></tr><tr><td>Socket</td><td>AM5</td></tr><tr><td>Chipset</td><td>AMD B850</td></tr><tr><td>Memory Support</td><td>4 x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen&trade; 9000 Series Processors max. overclocking frequency:
&bull; 1DPC 1R Max speed up to 8200+ MT/s
&bull; 1DPC 2R Max speed up to 6400+ MT/s
&bull; 2DPC 1R Max speed up to 6400+ MT/s
&bull; 2DPC 2R Max speed up to 6000+ MT/s

Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*

* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
&bull; The DIMM slots on this motherboard only have single-sided latches.
&bull; Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product&rsquo;s Support page or visit https://www.msi.com/support/.</td></tr><tr><td>LAN</td><td>Realtek&reg; 8126VB 5G LAN</td></tr><tr><td>Operating System Support</td><td>Support for Windows&reg;&nbsp;11 64-bit</td></tr><tr><td>M.2 Storage Type Support</td><td>NVMe</td></tr><tr><td>Package Contents</td><td>N/A</td></tr><tr><td>M.2 Slot</td><td>3</td></tr><tr><td>Multi Graphic Support</td><td>None</td></tr><tr><td>BIOS</td><td>N/A</td></tr><tr><td>CPU Brand</td><td>AMD</td></tr><tr><td>Brand</td><td>MSI</td></tr><tr><td>Audio</td><td>Realtek&reg; ALC897
7.1-Channel High Definition Audio</td></tr><tr><td>Expansion Slots</td><td>4 x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E1 slot
&bull; Supports PCIe 5.0 x16 (For Ryzen&trade; 9000/ 7000 Series processors)
&bull; Supports PCIe 4.0 x8 (For Ryzen&trade; 8700/ 8600/ 8400 Series processors)
&bull; Supports PCIe 4.0 x4 (For Ryzen&trade; 8500/ 8300 Series processor)</td></tr><tr><td>Graphics</td><td>1 x HDMI&trade;
Support HDMITM 2.1, maximum resolution of 4K 60Hz*
1 x DisplayPort
Support DisplayPort 1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.</td></tr><tr><td>Storage</td><td>3 x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280 devices

4 x SATA 6G

M2_1 slot
&bull; Supports up to PCIe 5.0 x4 (For Ryzen&trade; 9000/ 7000 Series processors)
&bull; Supports up to PCIe 4.0 x4 (For Ryzen&trade; 8000 Series processors)

M2_2 slot
&bull; Supports up to PCIe 4.0 x4
&bull; Supports up to PCIe 4.0 x2 (For Ryzen&trade; 8500/ 8300 Series processors)

*Please refer to the manual for M.2 SSD heatsink restrictions.

RAID
Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, and RAID 5 for M.2 NVMe storage devices

*RAID 5 configuration is only supported by Ryzen&trade; 9000 series processors.</td></tr><tr><td>USB</td><td>4 x USB 2.0 (Rear)
4 x USB 2.0 (Front)
2 x USB 5Gbps Type A (Rear)
4 x USB 5Gbps Type A (Front)
1 x USB 10Gbps Type A (Rear)
1 x USB 10Gbps Type C (Rear)
1 x USB 10Gbps Type C (Front)</td></tr><tr><td>Internal I/O Connectors</td><td>1 x Power Connector(ATX_PWR)
1 x Power Connector(CPU_PWR)
1 x Power Connector(PCIE_PWR 8pin)
1 x CPU Fan
1 x Combo Fan (Pump_Sys Fan)
3 x System Fan
2 x Front Panel (JFP)
1 x Chassis Intrusion (JCI)
1 x Front Audio (JAUD)
1 x Com Port (JCOM)
1 x Tuning Controller connector(JDASH)
3 x Addressable V2 RGB LED connector (JARGB_V2)
1 x RGB LED connector(JRGB)
1 x TPM pin header(Support TPM 2.0)
4 x USB 2.0 ports
4 x USB 5Gbps Type A ports

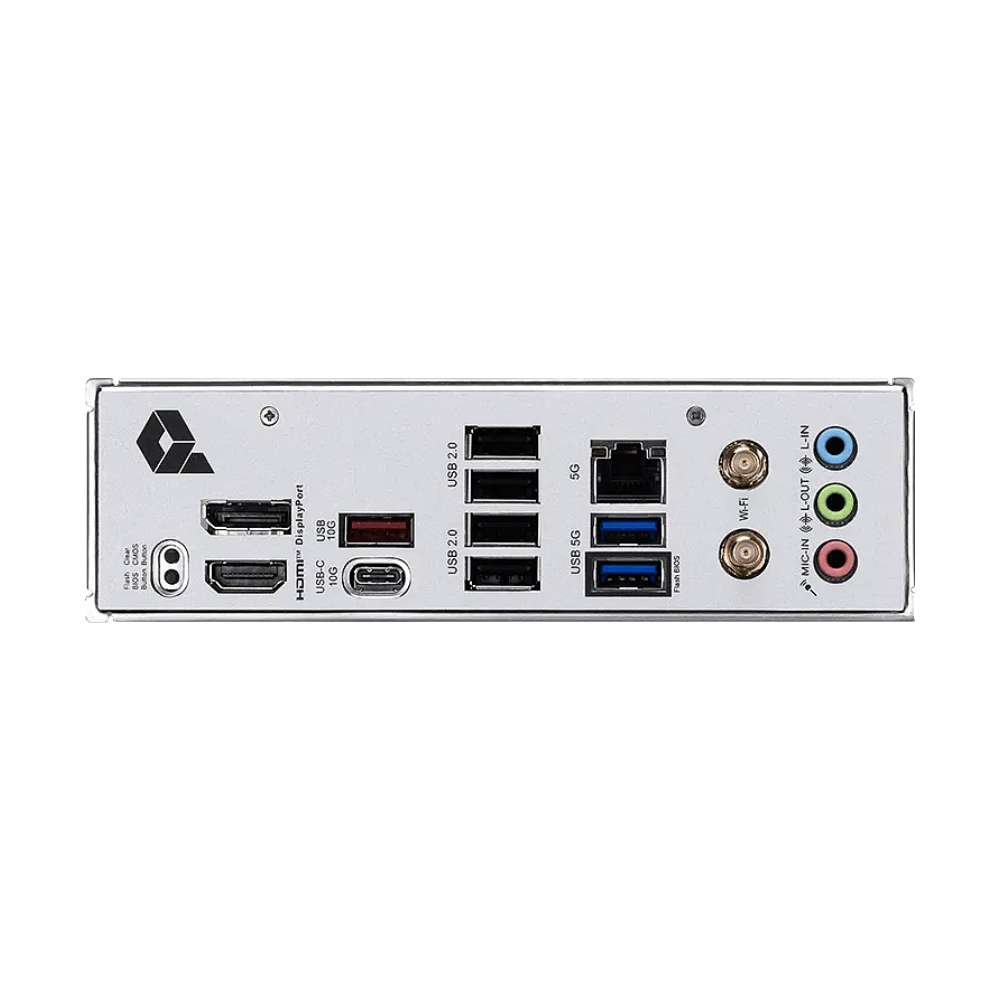

1 x USB 10Gbps Type C ports</td></tr><tr><td>Back Panel Connectors</td><td>4 x USB 2.0
2 x USB 5Gbps Type-A
1 x USB 10Gbps Type-A
1 x USB 10Gbps Type-C
1 x HDMI&trade;
1 x DisplayPort
Audio connectors
5G LAN
Wi-Fi / Bluetooth
Clear CMOS Button
Flash BIOS Button</td></tr><tr><td>H/W Monitoring</td><td>N/A</td></tr><tr><td>Maximum PCIe Version</td><td>PCIe 5.0</td></tr><tr><td>Form Factor</td><td>Micro ATX</td></tr><tr><td>Wireless Data Network</td><td>Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.9Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth&reg; 5.4**, MLO, 4KQAM

* 6GHz band support may depend on every country&rsquo;s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor&rsquo;s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.</td></tr><tr><td>Maximum Memory Bus</td><td>8200</td></tr><tr><td>Special Features</td><td>LED FEATURE
4 x EZ Debug LED
1 x EZ Memory Detection LED</td></tr><tr><td>Software Features</td><td>N/A</td></tr><tr><td>Dimension (cm)</td><td>(W x L x H) : 24.38 x 24.38 x 0.00 cm</td></tr><tr><td>Package Dimension (cm)</td><td>(W x L x H) : 27.00 x 28.00 x 7.00 cm</td></tr><tr><td>Net Weight (kg)</td><td>0.00 kg</td></tr><tr><td>Gross Weight (kg)</td><td>1.20 kg</td></tr><tr><td>Volume (cm³)</td><td>5,292.00 kg</td></tr></tbody></table>
